Description

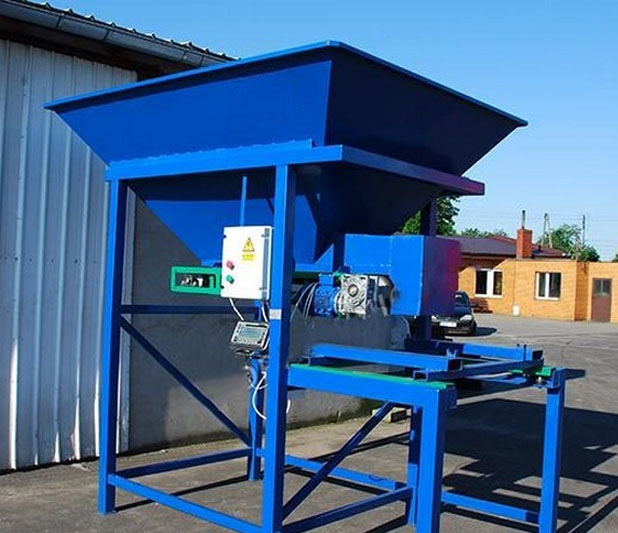

BIG-BAG BAGING MACHINE KAR15 high hopper
This is a hopper with an extraction belt that directly fills the BIG-BAG.
When the BIG-BAG reaches the pre-set weight on the programmable scale, the filling phase ends.
Everything is manually activated by the operator with the green mushroom button on the control panel or with the pedal.
Features
Output: from 30 t/h to 40 t/h
Weighing from 0 to 1500Kg
Extraction belt length 1.5m
4m³ hopper with dimensions L 3m x W 2m x H 1.2m
Weighing accuracy: Depending on the material
Under-hopper vibrator to facilitate hopper unloading operations
Robust construction
400V power supply
3-layer painting
Documentation manuals
CE declaration of conformity

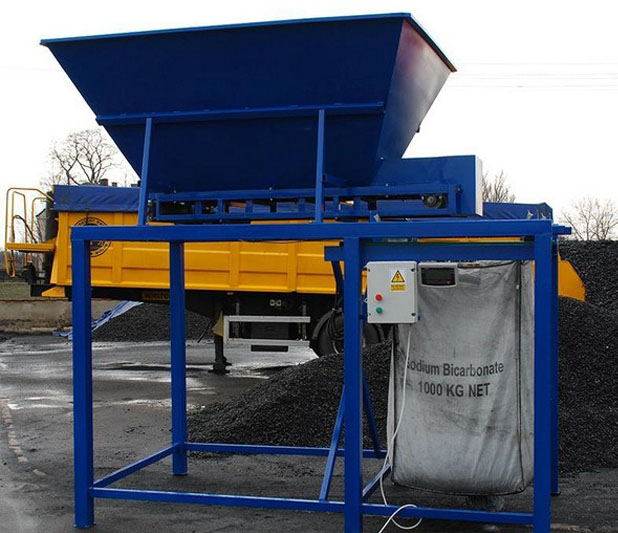

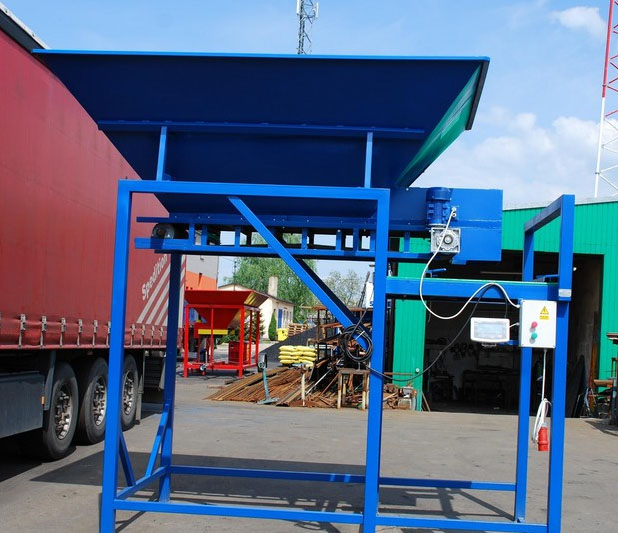

KAR15 high hopper big bag filling machine complete with weighting scale

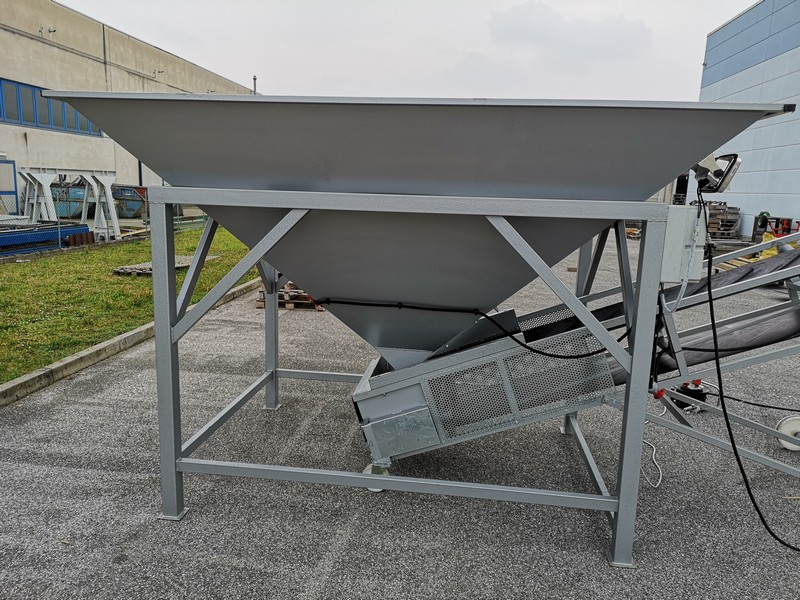

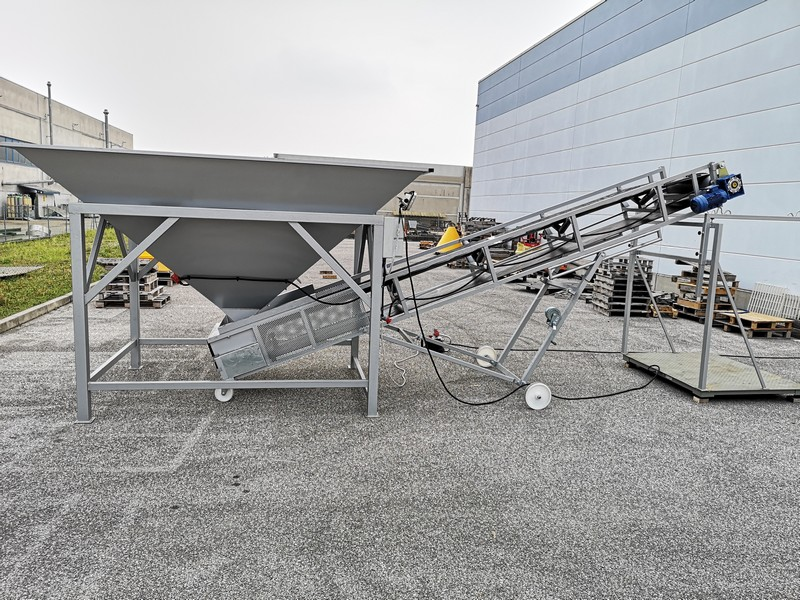

BIG-BAG BAGING MACHINE KAR16 low hopper:
Features
Yield: from 30 t/h to 40 t/h
Filling time: 500Kg in 50 seconds
5.5 m³ loading hopper dimensions 3000 x 2000mm

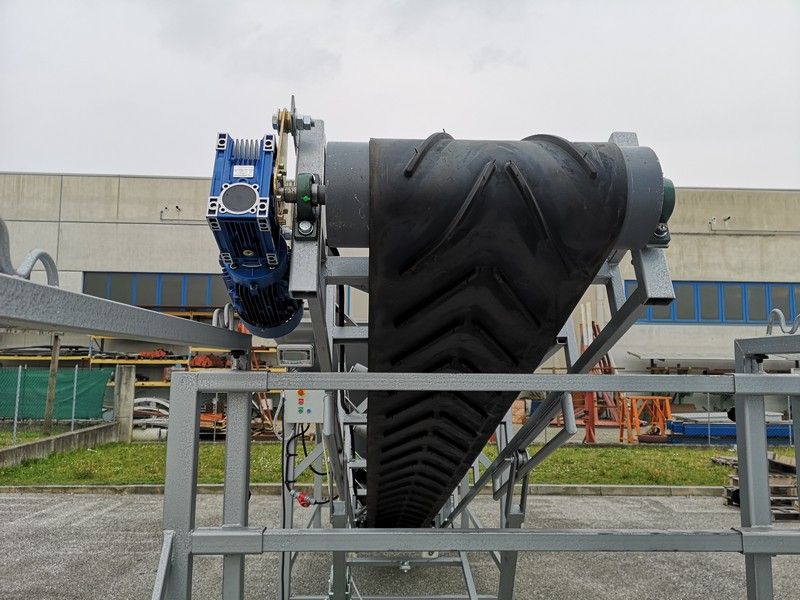

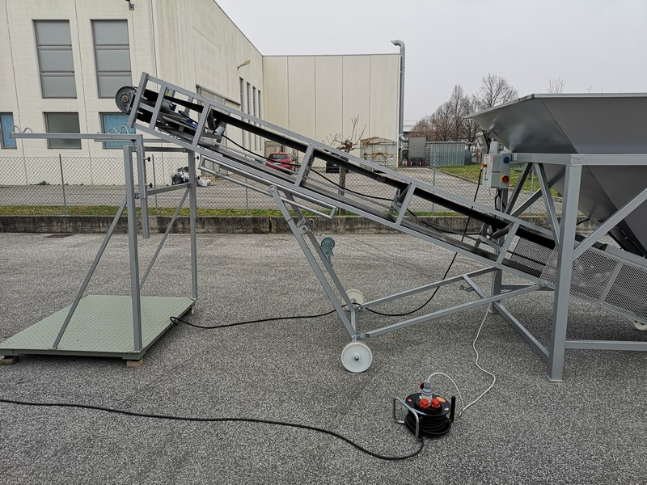

4.5/5 meter long loading belt, 50cm wide adjustable in height to connect to the big bag according to the size
Belt height adjustment with manual winch
Continuous adjustment of the quantity of material

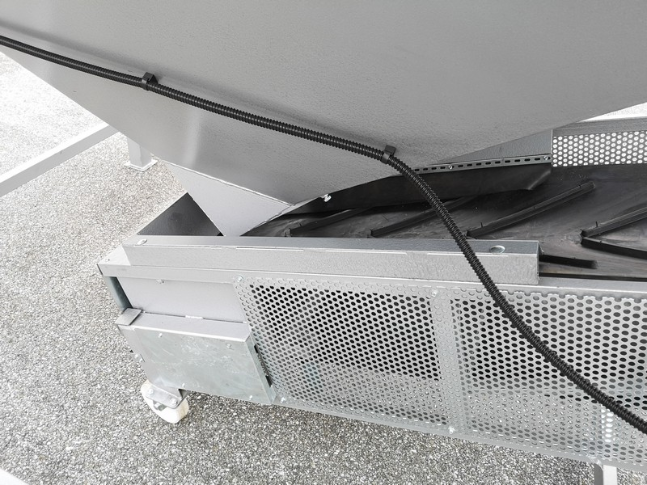

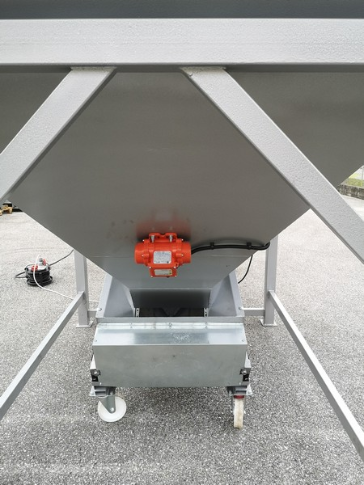

Under-hopper vibrator to facilitate hopper unloading operations
Scale for big bags up to 3000 kg
Robust construction
400V three-phase power supply
3-layer coating
Documentation manuals
CE declaration of conformity
Made in EU

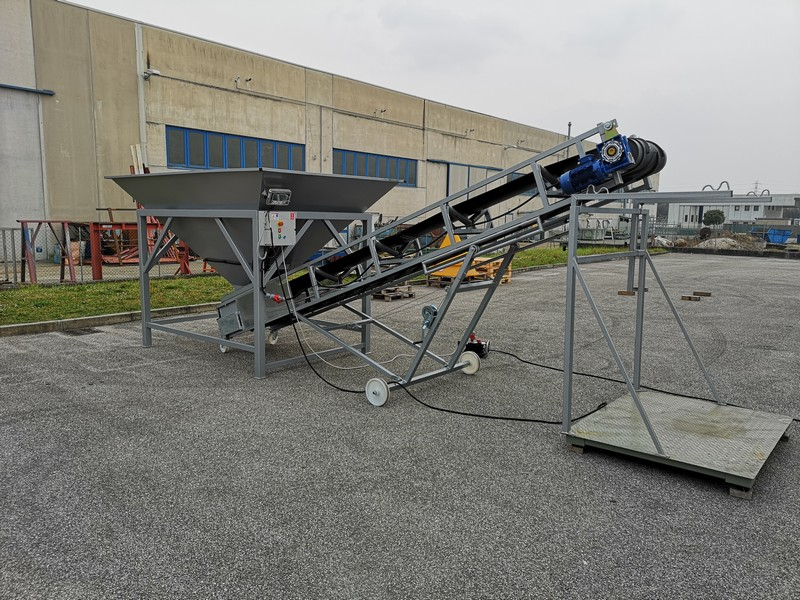

KAR16 low hopper big bag filling machine complete with weighting scale
