Capsule / Tablet Counting Machines

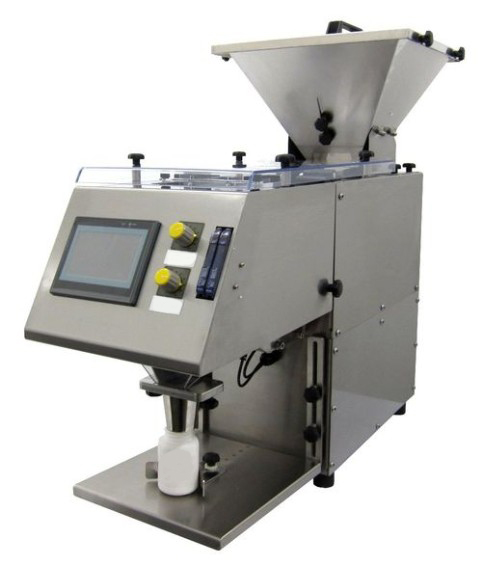

Tabletop Tablet / Capsule Counting Machine PM 600

The PM 600 tablet counter machine is a small and portable counting machine for tablets, capsules etc. with a maximum output of 600 tablets per minute, it is primarily used in hospital pharmacies and companies with small scale production runs. It has been used for other applications so please ask about yours. The product to be counted is placed in the hopper were it is vibrated around a plastic scroll before dropping individually through an infra-red beam which accurately counts them into a container. You can set the amount to be counted and the number of batches to be run on a digital display.

  • Tablet Counting machine for counting Pills
  • Tablet Counting machine for counting capsules
  • Tablet Counting machine for counting caplets
  • Counting machine for counting sweets
  • Counting machine for counting buttons
  • Counting machine for counting beads

PM-600 counter is designed to feed and count any size, shape or quantity of tablet and capsule without change parts.
Simple to operate and easy to clean.



FEATURES:

  • Variable speed control for twin tracks
  • Stainless steel outlet funnel and clear plastic dust cover
  • Tool-free release for counting different products
  • Front mounted touch screen control panel
  • Count display with reset
  • Height adjustable support stand
  • Tabletop or conveyor mounting
  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
  • 1.5L Product hopper (20L available)

OPTIONS:

  • Drugs bag pre-filling machine
  • Conveyor mounting

SPECIFICATIONS:

  • Counting Speed: 300~600 pcs/min
  • Power: Single Phase 110 or 220VAC, 50/60Hz
  • Air requirement: 2 CFM at 90 PSI
  • Bottle Size: 48mm~100mm ; Max Height 116mm
  • Product Range: 2mm-40mm
  • Machine Dimensions: (L)390mm (W)826mm (H)761.5mm
    (For reference only, the real drawing should be considered as final.)

Tabletop Tablet / Capsule Counting Machine PC 1000

The PC 1000 is one of our tablet counters which is a bench or table top counting machine for tablets, capsules etc. with a maximum output of 1000 tablets per minute, it is supplied to larger hospital pharmacies and companies with small to medium scale production runs. It has been used for other applications so please ask about yours. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a container. You can set the amount to be counted and the number of batches to be run on a digital display.

  • Tablet Counters for counting Pills
  • Tablet Counters for counting capsules
  • Tablet Counters for counting caplets
  • Counting machine for counting sweets
  • Counting machine for counting buttons
  • Counting machine for counting beads

Tabletop Tablet / Capsule Counting Machine PC-1000 is design for accurate counting and bottle filling of all kinds of tablets and capsules.



FEATURES:

  • PLC control system. Easy operation by Touch screen
  • Highly accurate Counting Speed : 600~1000 pcs/min
  • Flap Nozzle for Non-Stop counting
  • Dust Accumulating device enhance the counting accuracy
  • Tool Free for counting all types tablets and capsules
  • Easy control variable counting speed
  • Memory slot for counting recall
  • Advanced stainless steel GMP design
  • Choice of funnel sizes to suit container neck
  • Easy manual adjustment of hopper

SPECIFICATIONS:

  • Speed: 600~1000 pcs/min
  • Tablet Size 5mm 160,000 Tablets / hour
  • Tablet Size 10mm 90,000 Tablets / hour
  • Capsule Size # 1 50,000 Capsules / hour
  • Capsule Size # 4 70,000 Capsules / hour
  • Bottle size: 30~200mm in diameter
  • Accuracy: ± 0.1-0.2%
  • Power Supply: Single Phase 110 or 220VAC, 50/60Hz
  • Machine Dimensions: (L)760mm (W)550mm (H)740mm

Automatic / Capsule Counting Machine PM 412

The PM 412 Auto pill counter machine is an automatic version of the counting machine for tablets, capsules etc. with a maximum output of 2000 tablets per minute, it is supplied to companies with medium scale production runs. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a containers on a conveyor. You can set the amount to be counted and the number of batches to be run on a touch screen display.

Pill Counter machine for all types of counting applications

  • Pill Counter machine for counting Pills
  • Pill Counter machine for counting capsules
  • Pill Counter machine for counting caplets
  • Counting machine for counting sweets
  • Counting machine for counting buttons
  • Counting machine for counting beads

Automatic Multi-Channels Tablets/Capsule Counting Machine PM412 is designed to feed and count any size,shape or quantity of tablet and capsule (hard shell capsules, and soft gelatin capsules are compatible) with 100% counting accuracy without change parts . The counting of these products and the indexing of the bottle to be filled is controlled by PLC and Human Machine Interface. It’s simple to operate and easy to clean.



FEATURES:

  • Variable speed control for 12 tracks
  • Speed 1500~2000 pcs/min
  • Touch screen control panel with 50 memory slots
  • Advances in vibratory linear feeding suits for any kind of products
  • Emergency stop and Three -color indicate light
  • Clean up by vacuuming dust accumulation system
  • Pre-Counting increases machine outputs
  • Tool-free release for counting different products
  • Air-cylinder index to direct the next batch of containers into filling position
  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement

OPTIONS:

  • In-Feed and Out-Feed Conveyor
  • Rejection System (Remove Miscounting Bottles)
  • Lid Open and Lid Close system
  • Turnkey linkage with filler, labeler and other in-line systems
  • Product Quantity Level control

SPECIFICATIONS:

  • Counting Speed: 1500~2000 pcs/min
  • Power Supply: 110 or 220VAC, 50/60Hz
  • Air requirement: 200 L / minute @ 6bar
  • Machine Dimensions: (L)1280mm (W)1160mm (H)1690mm
    (For reference only, the real drawing should be considered as final.)

Automatic / Capsule Counting Machine PM 406

The PM 406 Auto pill counter machine is an automatic version of the counting machine for tablets, capsules etc. with a maximum output of 2000 tablets per minute, it is supplied to companies with medium scale production runs. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a containers on a conveyor. You can set the amount to be counted and the number of batches to be run on a touch screen display.

Pill Counter machine for all types of counting applications

  • Pill Counter machine for counting Pills
  • Pill Counter machine for counting capsules
  • Pill Counter machine for counting caplets
  • Counting machine for counting sweets
  • Counting machine for counting buttons
  • Counting machine for counting beads

Automatic Multi-Channels Tablets/Capsule Counting Machine PM-406 is designed to feed and count any size,shape or quantity of tablet and capsule (hard shell capsules, and soft gelatin capsules are compatible) with 99.9% counting accuracy without change parts . The counting of these products and the indexing of the bottle to be filled is controlled by PLC and Human Machine Interface. It’s simple to operate and easy to clean.



FEATURES:

  • Variable speed control for 6 tracks.
  • Speed 1800~2000 pcs/min.
  • Touch screen control panel with 50 memory slots.
  • Advances in vibratory linear feeding suits for any kind of products.
  • Emergency stop and Three -color indicate light.
  • Clean up by vacuuming dust accumulation system.
  • Pre-Counting increases machine outputs
  • Tool-free release for counting different products.
  • Japan made “Keyence” high accuracy fiber sensor.
  • Air-cylinder index to direct the next batch of containers into filling position.
  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement.

OPTIONS:

  • In-Feed and Out-Feed Conveyor
  • Rejection System (Remove Miscounting Bottles)
  • Lid Open and Lid Close system
  • Turnkey linkage with filler, labeler and other in-line systems
  • Product Quantity Level control

SPECIFICATIONS:

  • Counting Speed: 1800~2000 pcs/min
  • Power Supply: 110 or 220VAC, 50/60Hz
  • Machine Dimensions: (L)1633mm (W)1478mm (H)1713mm
    (For reference only, the real drawing should be considered as final.)

Automatic / Capsule Counting Machine PC 415

The PC 415 Auto pill counter machine is an automatic version of the counting machine for tablets, capsules etc. with a maximum output of 1000 tablets per minute, it is supplied to companies with medium scale production runs. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a containers on a conveyor. You can set the amount to be counted and the number of batches to be run on a touch screen display.

Pill Counter machine for all types of counting applications

  • Pill Counter machine for counting Pills
  • Pill Counter machine for counting capsules
  • Pill Counter machine for counting caplets
  • Counting machine for counting sweets
  • Counting machine for counting buttons
  • Counting machine for counting beads

Automatic Tablet / Capsule Counting Machine PC-415 is designed for accurate counting and bottle filling of all kinds of tablets and capsules.



FEATURES:

  • PLC control system. Easy operation by Touch screen
  • Highly accurate Counting Speed : 600~1000 pcs/min
  • Flap Nozzle for Non-Stop counting
  • Dust Accumulating device enhance the counting accuracy
  • Japan made “ Keyence” high accuracy fiber sensor
  • Tool Free for counting all types tablets and capsules
  • Easy control variable counting speed
  • Memory slot for counting recall
  • Advanced stainless steel GMP design
  • Choice of funnel sizes to suit container neck
  • Easy manual adjustment of hopper

SPECIFICATIONS:

  • Speed: 600~1000 pcs/min
  • Tablet size: 5~16mm in diameter
  • Bottle size: 30~200mm in diameter
  • Accuracy: ±0.1-0.2%
  • Power Supply: single phase 110/220VAC, 50/60Hz
  • Machine Dimensions: (L)760mm (W)550mm (H)740mm
    (For reference only, the real drawing should be considered as final.)
