Large dose machines

Product description & features

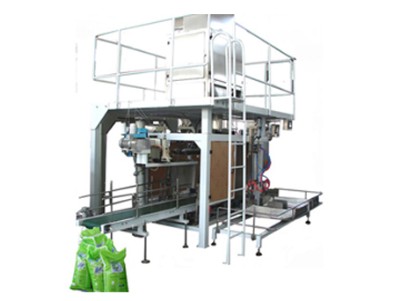

BLK-2A

This unit consists of one set elevator, one set automatic weighing machine, one set bag-feeding packing machine, one set automatic sewing machine and one set conveyor.

Control system: PLC and touch screen
Function: product lifting, measuring, filling, bag-opening, sealing and output
Measuring weight: 5-25kg
Packing speed: 1-3bags per minute
Accuracy: 0.2%
Power: 380V /220V/110V 50-60HZ
Bag material: hard plastic woven bag
Bag size:(500~650)*(300~400)*(120~200)

Product description & features

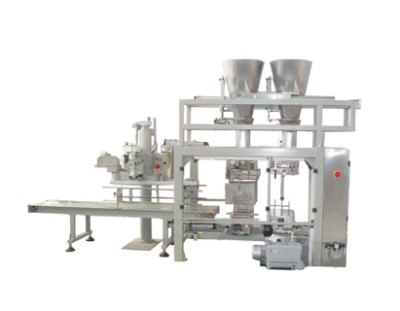

BLK-2B

This unit consists of one set elevator, one set CJD50K-S25K automatic weighing machine, one set VFSW1000 bag-feeding packing machine, one set automatic sewing machine and one set conveyor.

Control system: PLC and touch screen
Function: product lifting, measuring, filling, bag-opening, sealing and output
Measuring weight: 10-50kg
Packing speed: 6-12bags per minute
Accuracy: 0.2%
Power: 380V /220V/110V 50-60HZ
Weight:600kg
Hopper volume: 50L

Product description & features

BLK-3A

Measurement range: according to the selected sensor
Measurement speed:100-150 b / pm (Depending on the measurement value and weighing accuracy varies )
Measuring accuracy: 0.5%
Sensor using resistance strain measuring load sensors
AD with high-speed precision data converters and single-chip microprocessor
Touch -screen display operation or six LED digital display .
Nonlinearity : <0.01% F.S
Power Supply : AC 380 10% 50HZ; power :0.5 – 2KW
Operating temperature : -10 ~ +70 ? Relative humidity : <90% RH

Product description & features

GL-1C1

This machine is manual aid can auto-complete following work: weighing, filling, nipping-bags, sealing bags, and conveying. It suits products like milk powder, fodder, rice powder, white sugar, coffee powder, monosodium glutamate, solid beverage, dextrose, pharmaceuticals, and agriculture pesticide, granular additive, dyestuff, and so on.

Metering Mode: Weighing (with the packing bag)
Packing Weight: 5 – 50KG
Feeding Mode :Double screw feeder (or vibrator feeder)
Filling Accuracy: = 0.2%
Sealing Machine:heat sealing machine+sweaming machine
Filling Rate: =3Bags/min
Power Supply: 3P/380V(1P/220V according your requirement) 50 – 60Hz
Total Power: 3.9Kw. (without the power for the air supply)
Total Weight: 300Kg
Overall Dimensions:4500 x 1600 x 2400MM

Product description & features

GL-1C2

Metering Mode: Weighing (weighing hopper to measure)
Packing Weight: 10 – 50KG
Feeding Mode :Double screw feeder
Filling Accuracy: = 0.2%
Filling Rate: = 6 bags/min
Sealing Way: heat sealing machine+steaming machine
Power Supply: 3P/380V(1P/220V according your requirement) 50 – 60Hz
Total Power: 3.96Kw.
Total Weight: 500Kg
Overall Dimensions:4750 x 1520 x 2530MM(without the hopper)

Product description & features

BLK-1D

The TYPE weighing pneumatic filler, its principle is that weighing transduction platform set controlled volume under the control of the microcomputer program. As filling, at first remove the tare. When the materials are injected into vessel, at first quickly feed material at a large controlled volume, and then slowly modify the controlled volume at a small controlled volume. The operational person only need place the vessel on the platform, aim the vessel’s mouth at he material-falling mouth, in the moment, the program is started, the material-falling mouth downs, open the filling valve to feed material, when it reaches to the setting volume, automatically stop the material-replenishing, the material-feeding mouth ups, finished a filling process.

Filling range 50-200kg
Measurement precision 0.2%
Filling speed 20-100 kegs/hour
Working air pressure 5-7kg/cm
Net weight 450kg
