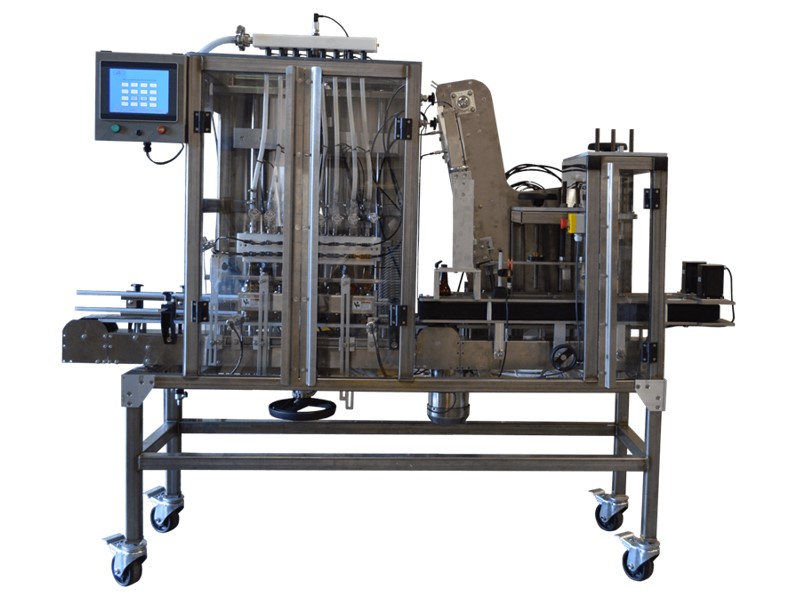

Carbonated Bottle Filler
- Fully automatic operation.
- Option for a 4 head, 6 head or 8 head filler.
- Bottle sizing ranging from 12oz to 750ml.
- Flow sensors to ensure controlled filling and no waste of product.
- Finishes with a crown capper to seal the bottles.
- Options to substitute the crown capper with a screw capper or corker.
- True pre-evac and CO2 charge prior to filling eradicates oxygen in the bottle.
- Automatic bottle-handling throughout the machine.
- Misalignment is not possible as no bottles are used to push other bottles through the filling process.
- Able to run any size of bottle through the same machine.
The handling of containers is fully automatic — no manual loading or unloading of bottles. Once ready, the bottles are shuttled over and are set under the filling heads. The filling heads use genuine liquid pinch valves to control the product flow. Flow meters placed on each head allows for fine adjustments of the fill height, dependent on your preferences.
Once completed, the bottles are transferred using hugger belts over to the crowning conveyor where a crown cap is crimped onto the bottle. At completion, the bottles exit over to an accumulation table for pack off.
Technical Data Carbonated Bottle Filler
Every machine in the line is fully adjustable from 12oz to 750mL bottles
4-Head: ~16 bottles/min | 40 cases/hr
6-Head: ~24 bottles/min | 60 cases/hr
8-Head: ~32 bottles/min | 80 cases/hr
*Speeds based on averages
