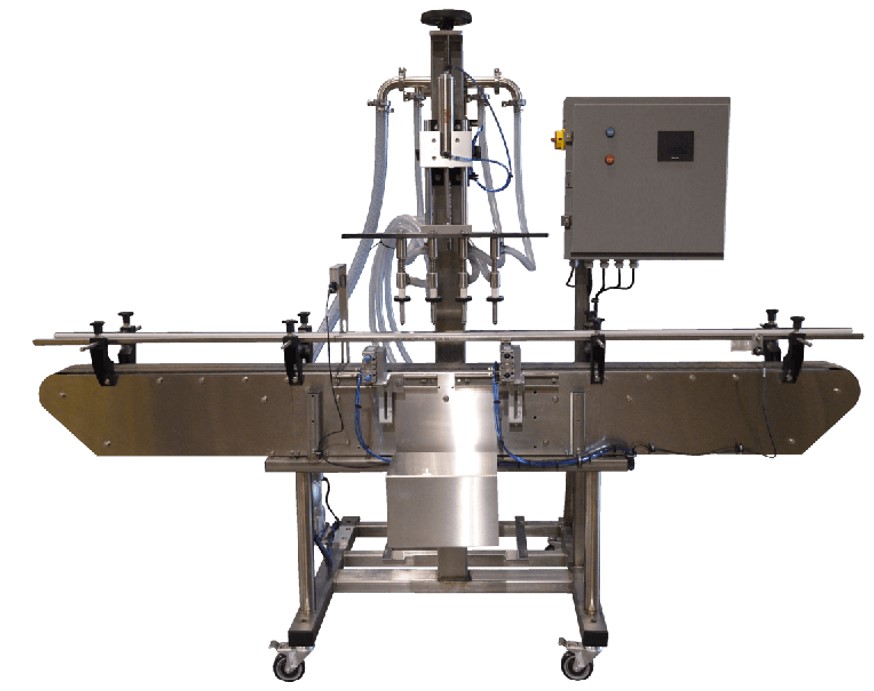

Economy Overflow Filler

The Economy Overflow Filler from Inline Packaging Systems employs gravity with a 4 or 6 head filling option.

  • Product aligner engages the necks of each container and centers it under each fill nozzle
  • Fill tubes will be opened and as air exits, product will flow in from the product tank
  • Fill-to-level principle controlled by position of the vent tube
  • Cycle is time controlled and fully adjustable
  • Excess product is recirculated into the product tank

For the 4 or 6 Head Gravity Filler, the containers enter the gravity filler area in groups. Once the last container in the batch passes the mounted counting sensor, a pneumatic gate will engage an prevent other containers from interfering in the filling process. From this point, a product aligner engages the necks of each container, centering it under each fill nozzle which then the nozzles will lower into the opening of each container.

Once securely seated on the bottle opening, the fill tubes will be opened. Once the air exits the container, product will flow in from the product tank. The fill level in each container is controlled by the position of the vent tube, making it a fill-to-level principle.

Glopak Inpakt Group Overflow Filler

Technical Data Economy Overflow Fillers

  • Conveyor Width: 115mm
  • Conveyor Height: 915mm standard, can be varied per specific application
  • Conveyor Length: 2440mm
  • Overall Machine Height: 2135mm
  • Overall Machine Length: 2550mm
  • Overall Machine Weight: 410kg
  • Power Requirements: 220V, 10AMP
  • Compressed Air: 65 psi @ 3-4 cfm

Video

Brochure

Glopak Inpakt Group Overflow Filler
