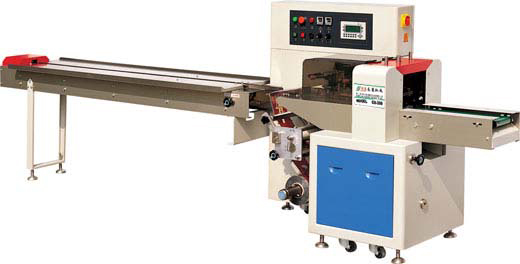

GP-100x Horizontal packaging machine


Product description & features

  • The key parts of the machine are a stainless steal structure in accordance with food QS and medicine GMP health requirements.
  • High sensitive electronic eye tracing system, after setting the machine does not need to be adjusted by hand, the cutting position is accurate and the seal is firm and attractive.
  • Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
  • Colour touch-screen display, machine can be turned off in position; Faults are self-diagnosed and displayed clearly.
  • Accurate automated counting system.
  • Machine design and convey system is simple. The machine is convenient to maintain.
  • The machine can be equipped with a gas charging device and production date code system according to client’s packaging requirements.

Scope of application

Suitable for towels, wet wipes, tissue, hotel disposables (knives and forks, tissue, etc.), fine, and omelets, sausage, squid, candy, biscuits, fruit, cartoons, medicine so soft, strip, bulk of packaging.



Technical Specification



Max width of packing film < 220 mm
Bag size (50 – 200) × (30 – 100) × (3 – 40) mm (L × W × H)
Packing film thickness 30 – 70 um
Packing speed 25 – 200 bag/ min
Total power voltage 220 VAC, 50 HZ
Power 2.75 kw
Size (lxWxH) 4460 × 660 × 1320 mm (L × W × H)
Weight 550 Kg
Optional collocate Printer, Gas Charging device, Feeder, Tidier
