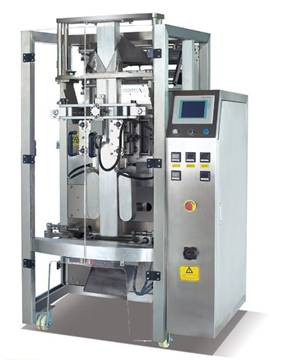

GP-520B Packaging Machine
Product description & features
- Double servo motors for film drawing down system
- Automatic film rectifying deviation function
- PLC. Pneumatic system for vertical and horizontal sealing
- Compatible with different internal and external measuring devices.
Application
Suitable for packing granule , powder, strip shape materials, such as puffed foods, peanuts, nuts, popcorn, sugar, salt, seeds, etc.
Technical Specification
| Model | GP-520B |
| Capacity | Max 50 bags/ min |
| Bag size | Front Width: 100- 160mm Side Length: 50- 80mm Width of side seal: 5- 10mm Length: 100- 350mm |
| Bag type | Block bottom |
| Film width | Max 520mm |
| Power supply | 220V 3.5KW 50HZ |
| Air consumption | 0.8 Mpa 0.6 m3/ min |
| Weight | 750kg |
