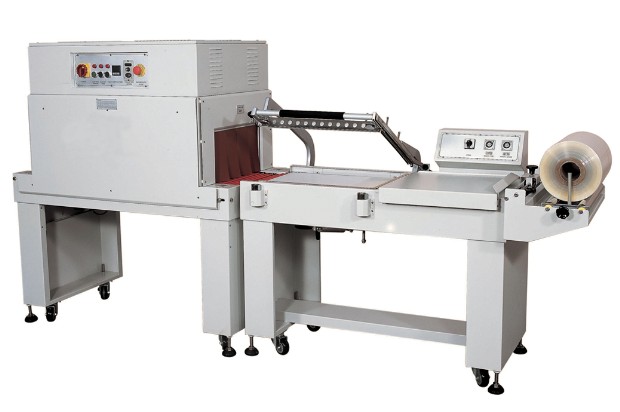

Combo Sealer and Shrink Tunnel GPK-5545T-C


Product description & features

  • High temperature and non stick L bar sealing knife, no smoke or burnt plastic. Sealed part is tidy and clean.
  • Conveyor belt is adjustable for speed.
  • There is a manual/auto switch. When choosing automatic the whole sealing action is controlled by a cylinder automatically with a fast packing speed.
  • Safety protection device is set on the sealer, in case of the sealing knife contacting hands.



Technical features of shrink tunnel

  • Saves the high temperature on the heating wire, the fan circulates air inside the tunnel increasing the temperature very fast with small amount of heat loss.
  • Output can reach to 20000-30000per day.
  • Conveyor rollers are covered by silica tubes, which guarantee a long life.
  • Triple hot insolate layers make sure the average power is only 4-5kw.
  • Conveyor speed is controllable in 1-10m per minute.
  • Suitable for PVC, POF, PP film’s.

Technical Specification



Model GPK -5545 T-C
Machine dimensions LxWxH (mm) 2569 × 764 × 1612
Machine packing size LxWxH (mm) 400 × 300 × 200
Machine sealing size LxWxH (mm) 550 X 450
Packing speed (pcs/h) 800 – 1200
Netweight (kg) 285
Power (kw) 5.5
Power supply 110V/ 220V 50/ 60 Hz
