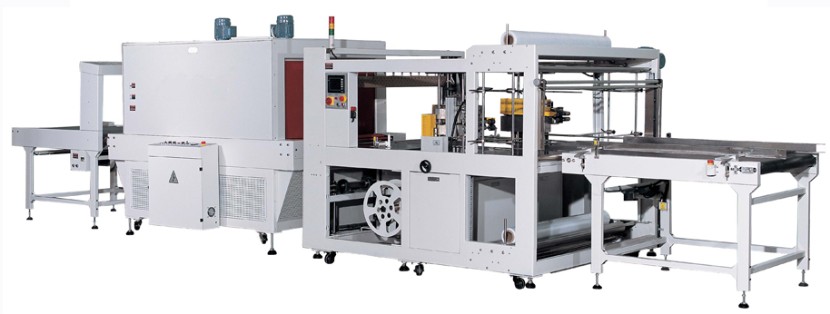

Full Close Sealer GPK-6030AF

This item including straight feed-in and upright feed-in.
Electronic Touch Screen, PLC to integrated mechanism, electricity, pneumatically
According to different sizes of products it could controlled and Tracked by PLC to automatic packing without an operator.
It has an inductive motor for collecting wasted film automatically at the bottom of the machine and reduces the noise. The packing speed is controlled by translator controller.
Double fan motors for better circulation and distributes the heat evenly.
Different product combinations can be sealed accurately and automatically.
Complete closed packing for water proof and light proof.

Scope of Application

Suitable for floor boards, ceramics, furniture, electric appliances or other shapes of products for closed shrink packing.

Model	GPK-6030AF
Machine dimensions LxWxH (mm)	2500×1550×1920
Machine packing size LxWxH (mm)	500x500x250
Sealing cutter size/Tunnel size LxWxH (mm)	1000×250
Infeed conveyor height (mm)	850 +/-50
Packing speed (pcs/min)	6-12
Net weight (kg)	500
Power (kw)	5.5
Power supply	220V/380V 50/60Hz
Air pressure	6.0
Film used	PE
