SCOPE OF OFFER: – Ampoule Packaging Machine for Liquid
| # | QTY | DESCRIPTION | PRICE | TOTAL | |
| 1 | 1 | AMPOULE LIQUID FILLING MACHINE – INP-240 P5-A
One set of mold Peristaltic pump. Approx. 45pcs/min, Fluororubber Pipe-10meter |
|||
| 2 | 1 | CHILLER – 2.5KW
For preventing the mold too heat, keep the mold in a stable condition. The price is quoted based on voltage of single phase, 220V 50Hz. |
|||
| SUB TOTAL MACHINES | |||||
| OPTIONAL | ||||
| 3 | 1 | Extra Mold | ||
| SUB TOTAL SERVICES | ||||
| TRANSPORT & START UP (SERVICES) | |||
| EQUIPMENT INSTALLED AND START UP AT CUSTOMER’S PREMISES | |||
| 3 | DELIVERY AND MACHINE START UP | ||
| SUB TOTAL SERVICES | |||
| TOTAL / EX VAT | |||

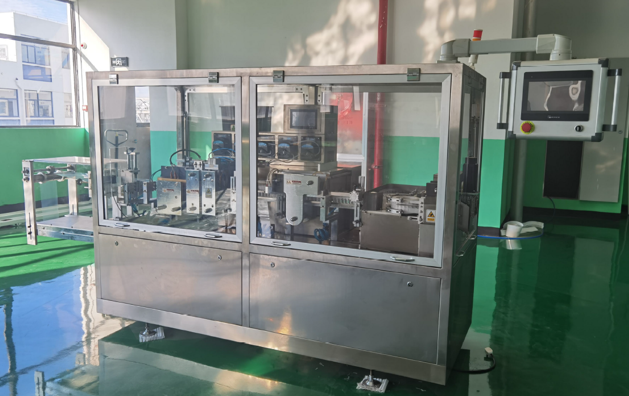

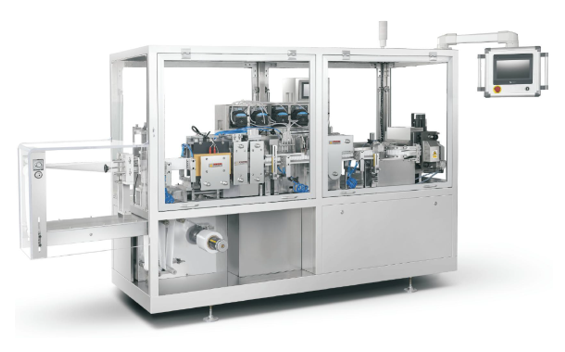

Ampoule Liquid Filling & Sealing Machine
INP-240 P5-A
Application
Compact machine, liquid filling and sealing machine, suitable for small batch filling for different product and widely used for filling oral liquid, perfume, liquid, essential oil, olive oil, syrup, fruit paste, health care product etc.
Features
1) HC high-speed and high-accuracy motion controller, stepless frequency control of speed and servo motor to control packing film pulling.
2) HMI – easy to operate

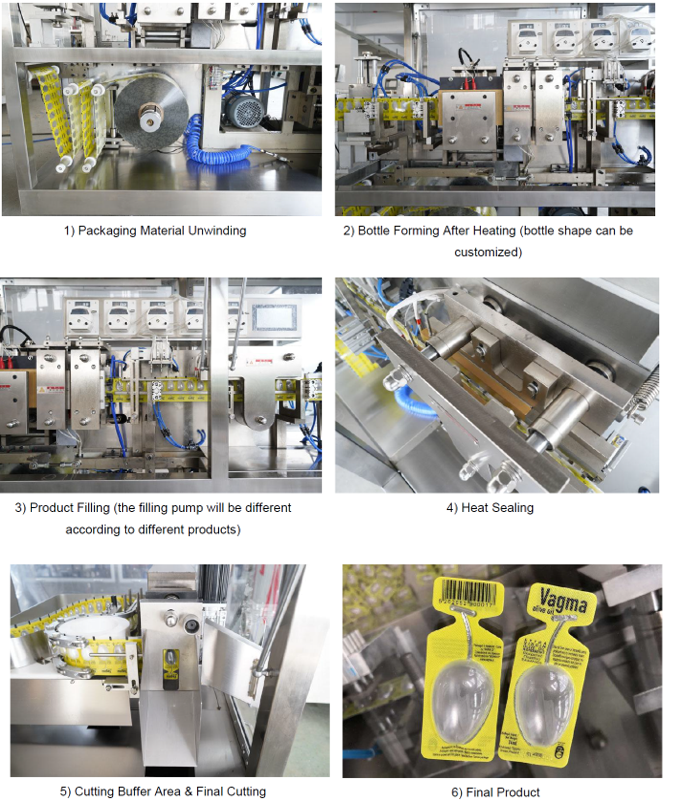

3) The packing is fed and cut automatically and photoelectric eye mark tracking system.
4) The liquid is pumped by peristaltic pump.
5) High filling accuracy, no leak, no foam and no overflow.
6) Parts contacting the material are made of SS316 and the outer cover made of SS304.
7) The cutter is controlled by a pair of servo motors to punch bottles in any number.
Specifications
ModelINP-240 P5-A (5 filling heads)
Max. forming depth 12mm
Forming frequency 1-35 times
Filling volume 0.3-200ml
Packing material PVC/PE, PET/PE (0.2-0.4)*260mm or other suitable packing film
Total power 7KW
Voltage 380V 50HZ (can be customized)
Overall dimension 3380*950*1800mm (L*W*H)
Dimension of the main split part 2500*950*1800mm (L*W*H)
Machine Weight

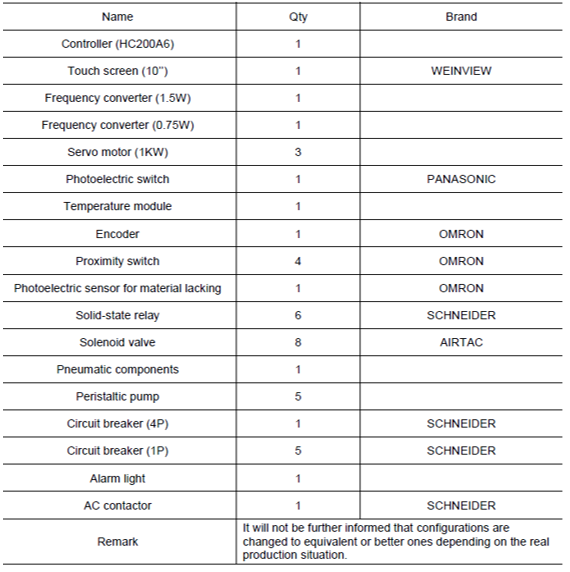

Parts Brand List – (can be adjusted according to clients’ requirements)
