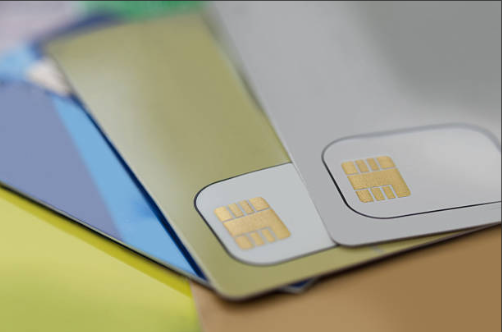

SMART CARDS, SIM CARDS

Description

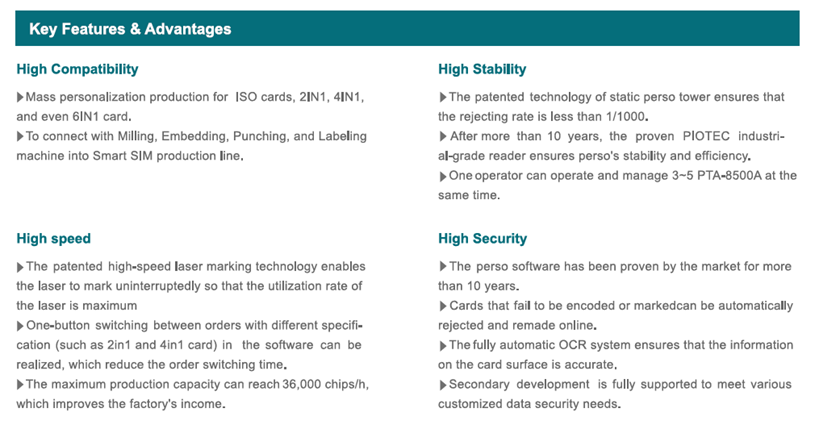

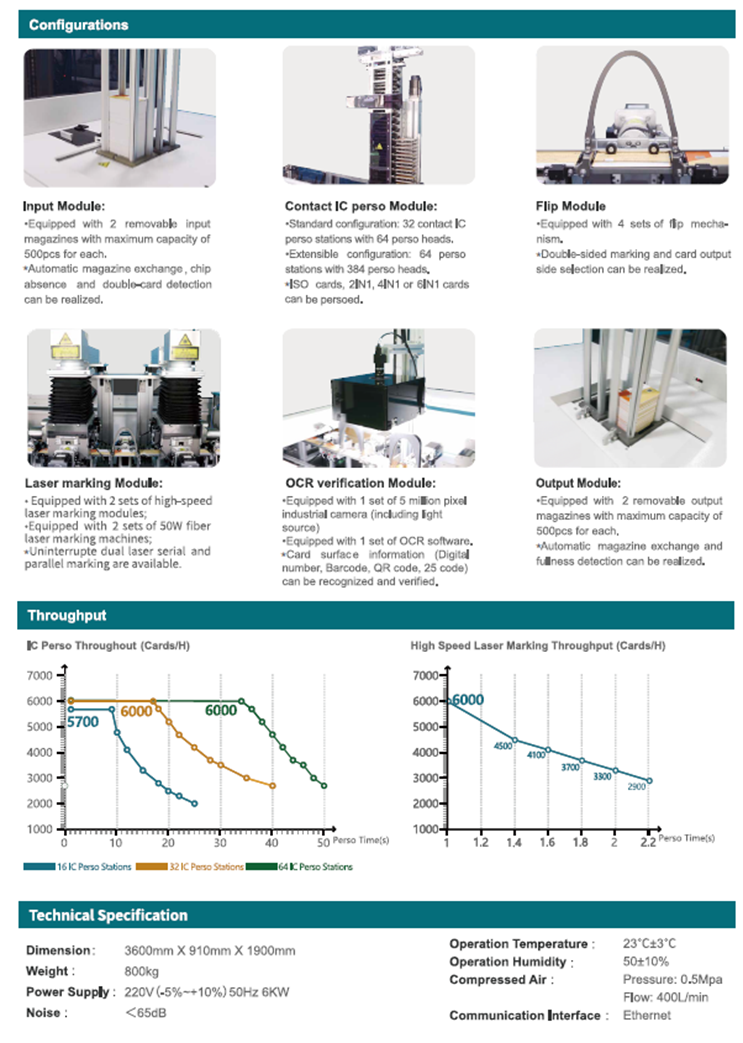

AUTOMATIC SIM CARD PRODUCTION LINE

No.	Product	Model	Configuration	QTY	Total Price

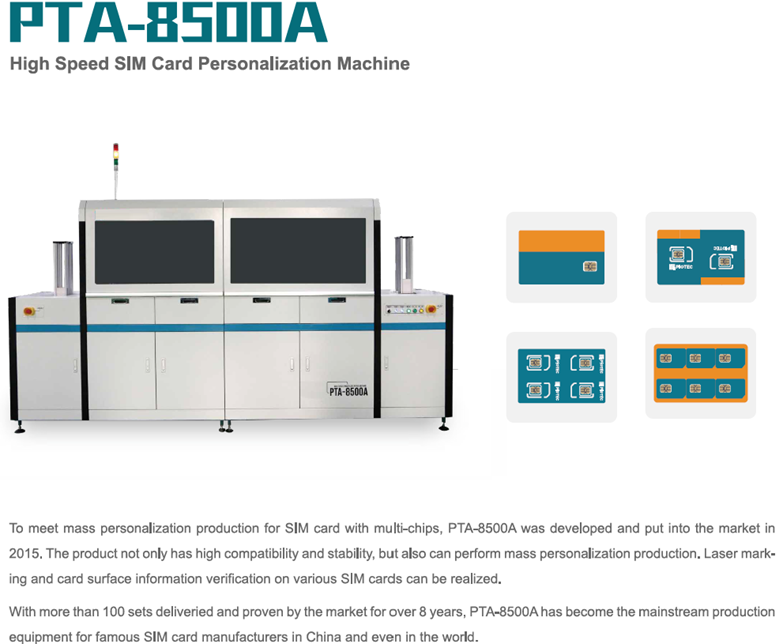

1	High Speed Smart Card Personalization Machine	PTA-8500A	1. Input Module 1 set – Removable card input magazine 2 set （Max. Capacity for each: 500pc） – Reject box / （Max. Capacity: 30pcs）	1	R4 940 000.00
			2. Contact IC Perso Module 1 set – Contact perso station for ISO & 2IN1 32 sets or Contact perso station for 4IN1 16 sets – 4IN1 Contact Reader PT204PT 16 pcs (64 heads)
			3. Flipper Module 4 sets – Flipper 3 sets – Realizing double-sided laser marking and card output side selection
			4. Laser Marking Module 2 set – Laser 2 sets – Fume extractor 2 sets
			5.OCR Checking Module -Optical Character Recognition System 1 set -Reading and verifying the surface information of the cards
			6.Output Module -Card output magazine 2 sets （ Max. Capacity for each: 500pcs）
			7. Reject box （ Max. Capacity: 50pcs） 1 set
			8. Smart Card Personalization Control System 1 set
			9. Smart Card Personalization Data Management System V1.0 1 set

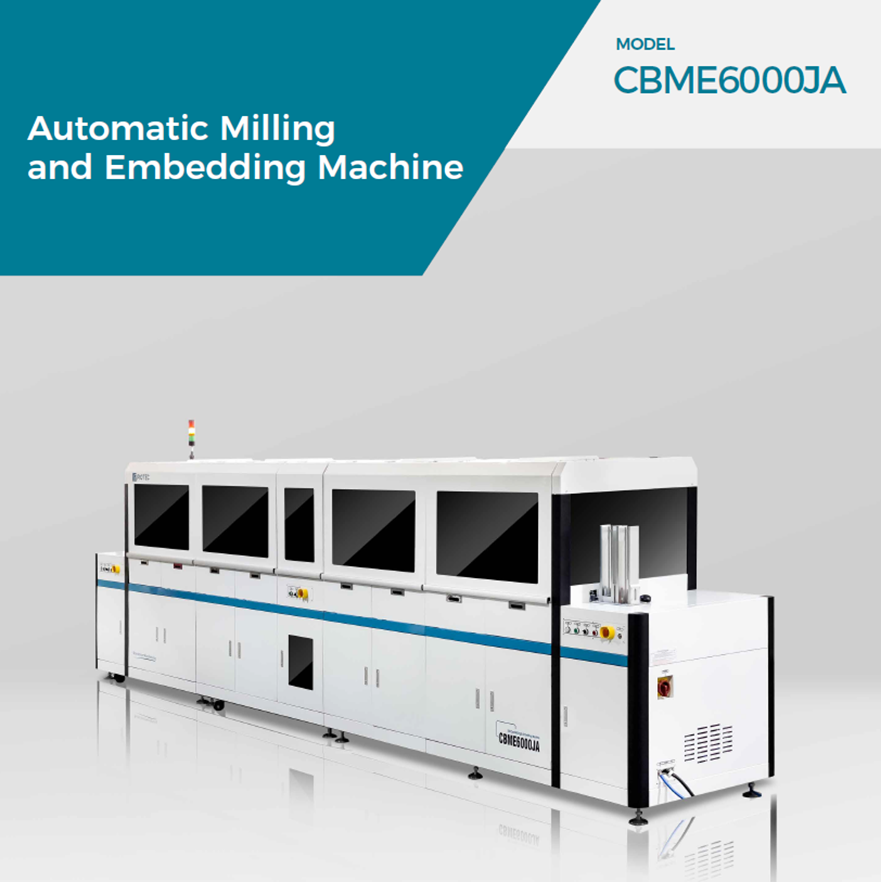

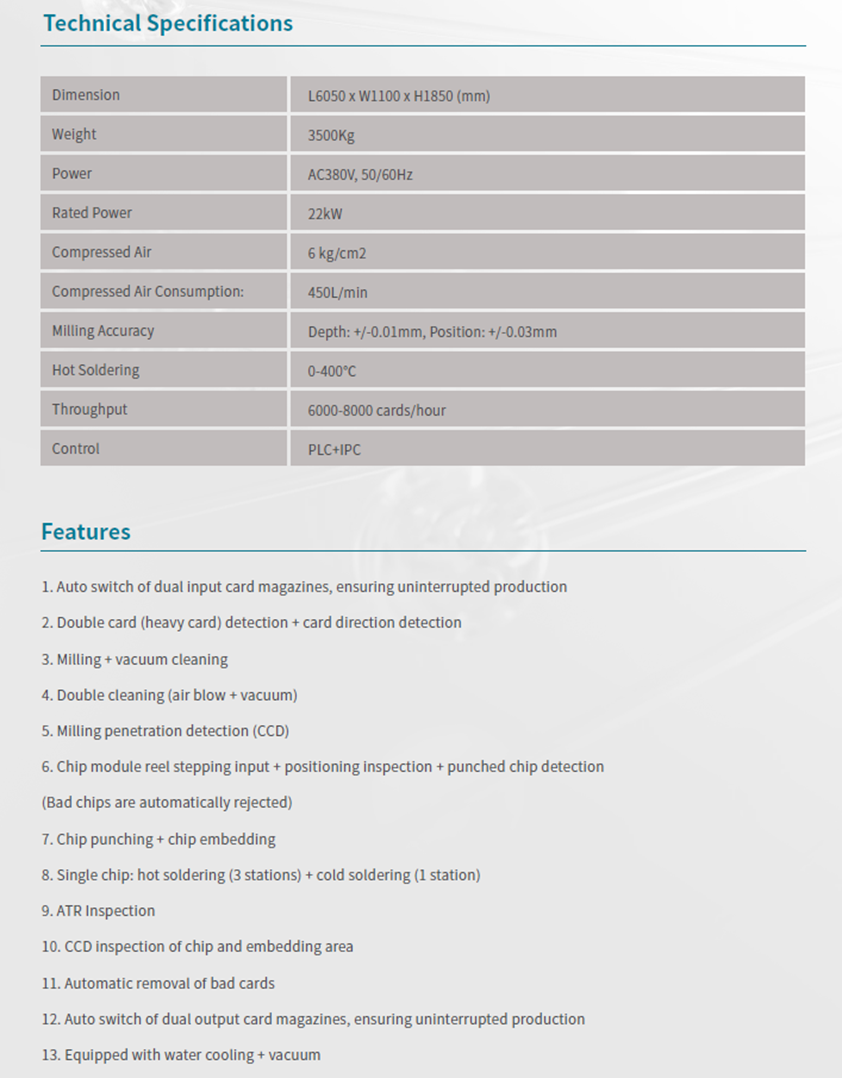

Automatic Milling and Embedding Machine

CBME6000JA

1.   Card input module    2 set
2.   Colour code Sensor Module    2 set
3.   Double Card Sensor Module    2 set
4.   Milling Module    4 set
5.   Rotating Module   2 set
6.   Depth Sensor Module    2 set
7.   Cleaning Module    4 set
8.   Chip Embedding Module    2 set
9.   Hot Press Module 9 set
10.   Cold Press Module   3 set
11.   ATR Contact test Module   3 set
12.   Output Module   2 set
13.   Vacuum system   2 set
14.   Cold water system   1 set

R3 800 000.00

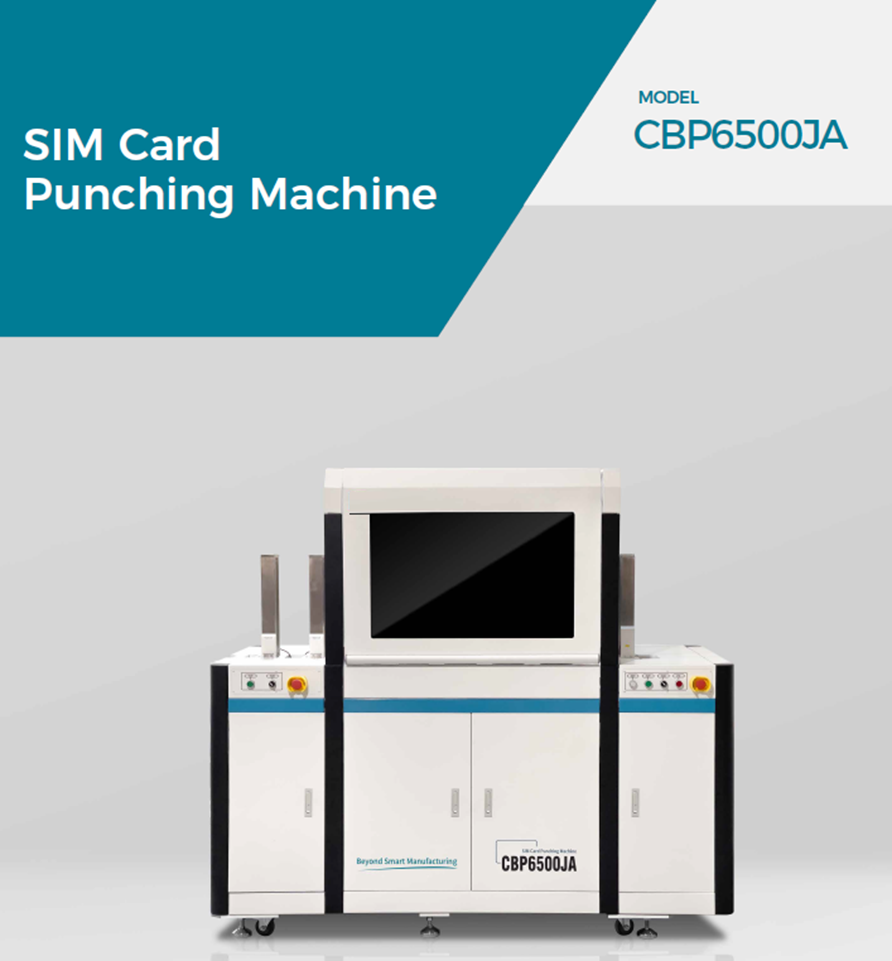

SIM Card Punching Machine

CBP6500JA

1.   Card Input Module 1 set
2.   Double Card Sensor Module 1 set
3.   4FF Punching Module 1 set
4.   3FF Punching Module 1 set
5.   2FF Punching Module 1 set
6.   2FF V-groove Punching Module 1 set
7.   ATR Contact test Module 1 set
8.   Output Module     1 set

R2 280 000.00

Customized Card Punching Machine

CBP5000LA

1. Customized Card Punching Machine CBP5000LA
2. Punching Mold to be customized

R2 295 000.00

On-site Service

On-site Training & Commissioning

1.       Engineer on-site to perform training and machines commissioning.
2.       Estimate max 10 days on-site service.
3.       In case of prolonged stay, R6700/day/person and accommodation shall be charged.

R290 000.00

This equipment is mainly suitable for the milling & embedding and inspection of telecom cards (SIM card).

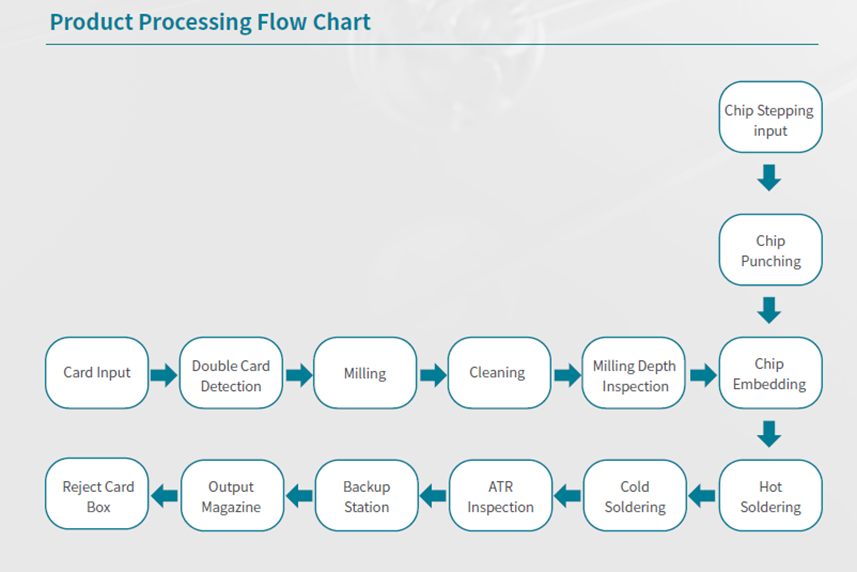

The main functions include automatic milling, double cleaning, milling penetration detection, chip punching and embedding, hot & cold soldering, ATR inspection, chip appearance inspection, etc.
Compatible with 1 in 1, 2 in 1, 4 in 1 and 6 in 1 card.
