Description
PROJECT DATA
| Model of the machine | T 3 VP
“Free-Standing” Rotary Chuck Capper |
| Capping heads | 3 heads Hysteresis closing heads with mechanical chucks |
| Cap Picking | Pick & Place system |
| Cap Sorter | Vibrating system |

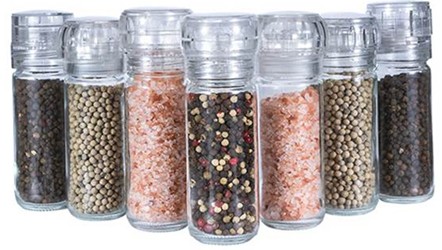

BOTTLES AND CAPS FEATURS
| Type of bottles | Type of Caps | Nominal Speed | Note |
| Cylindrical
GLASS & PET
Plastic Screw-on GRINDER
|
 |
60 BPM | Preliminary Quotation Confirmed after the receipt of the physical Samples of Bottles and Caps |
TECHNICAL DATA
| Electrical equipment | SIEMENS or ALLEN-BRADLEY |
| PLC | SIEMENS or ALLEN-BRADLEY |
| Moto reducer | MOTOVARIO / BONFIGLIOLI |
| Pneumatic material | FESTO / SMC |
| Conveyor Dimension | 100 x 100 mm. |
| Conveyor Height | 1.050 ± 50 mm. |
| Chain Width | 82,5 mm. |
TECHNICAL FEATURES OF THE MACHINE
MACHINE STRUCTURE
Stru
cture of the machine made out in stainless steel AISI 304, placed on adjustable feet built in resistant material. The machine is complete with safety protection in stainless steel AISI 304, built according to CE norms, integrated into the machine structure. The safety devices stop the machine preventing the bottles from breaking and the machine from getting damaged. Every part touching the product are in stainless steel AISI 304 (or AISI 316 available as optional). Equipped with a device to contain and recover the filling product that could be poured accidentally. The basement is complete with supports adjustable in height. Complete with stain

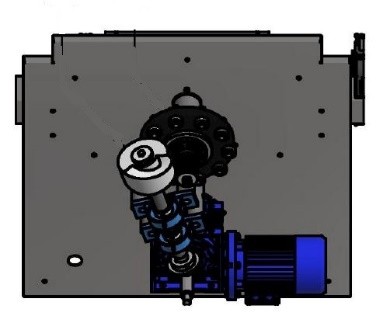

less steel bottles conveyor. Running sense of the machine from left to right (Clockwise)Rotation of the roundabout and the star devices by means of gears or reduction gears driven by gear- motors. Automatic releases on the central unit and on the star devices for an immediate stoppage in case of a wrong manoeuvre.

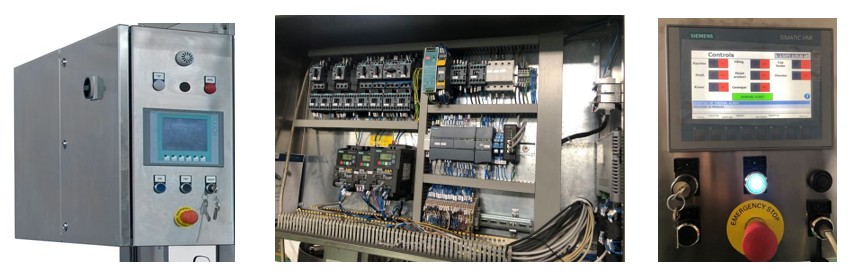

PLC & ELECTRICAL CABINET
Stainless steel electric board with low voltage controls, placed at machine side. Complete with electrical photocells placed in the enter and on the exit, in the case of problems and no arrival of bottles, the machine stops. Machine speed electronically adjusted by means of inverter. The Machine is complete with stainless steel electric board with low voltage controls, placed at machine frame side. Electronic control of the machine by PLC TOUCH SCREEN SIEMENS. (Allen-Bradley or other brands available on demand).
| Electrical equipment | SIEMENS or ALLEN-BRADLEY |
| PLC | SIEMENS or ALLEN-BRADLEY |
| Moto reducer | MOTOVARIO / BONFIGLIOLI |
| Pneumatic material | FESTO / SMC |
BOTTLES MOVMENT CONVEYOR

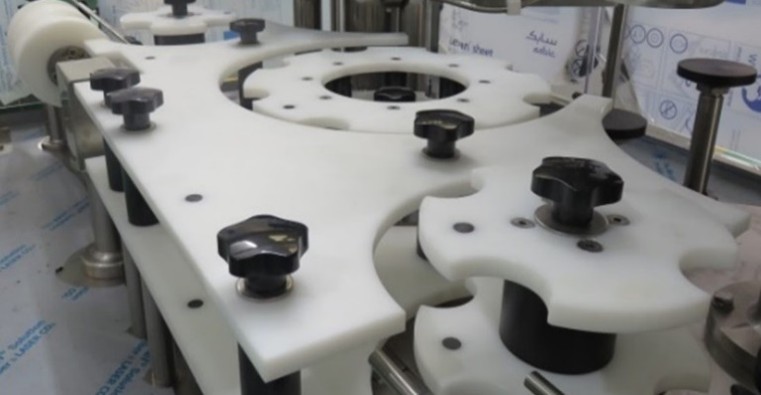

All devices in charge with the transfer and movements of bottles are made of HD polyethylene to ensure the minimum wear and a fully silent functioning
|

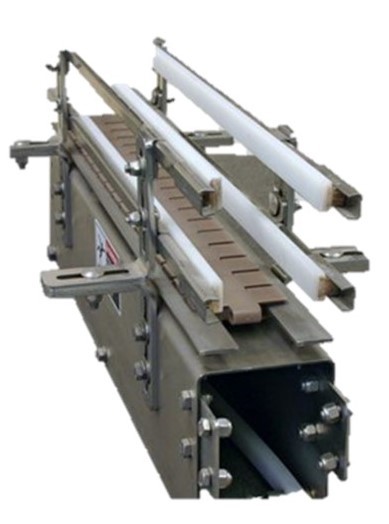

 Machine conveyor with Stainless Steel AISI 304 frame, plastic chain, and side rails.
Conveyor Dimension 100 x 100 mm. Chain Width 82,5 mm. |

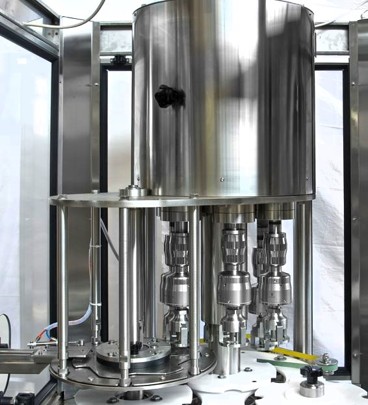

CAPPER
·
|

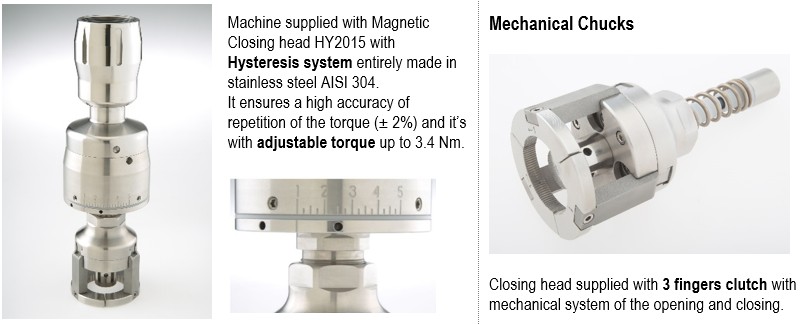

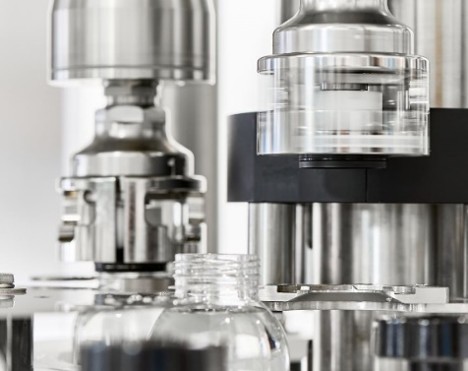

CLOSING HEADS

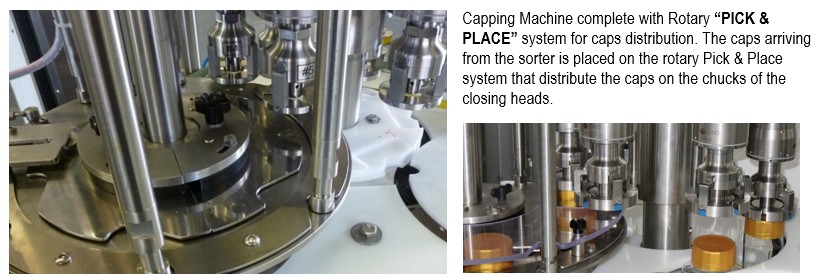

PICK & PLACE SYSTEM

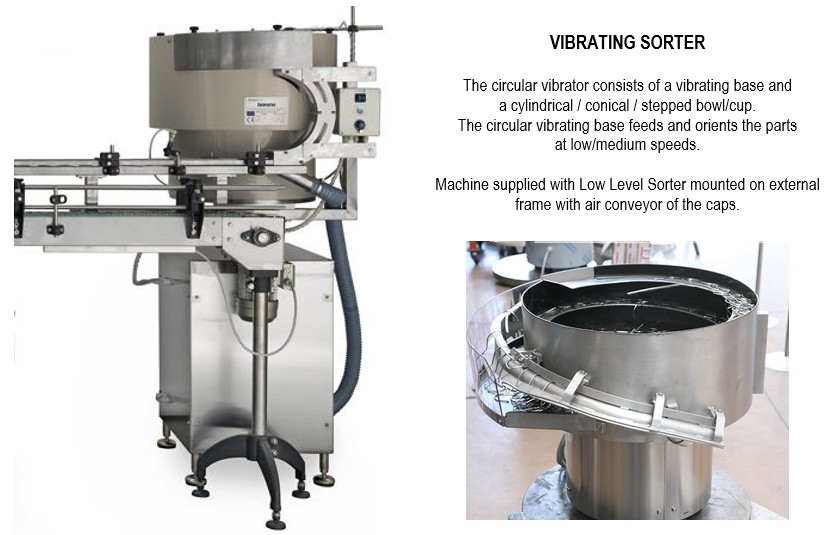

CAPS SORTER
EQUIPMENT LIST
| Item | Model of the Machine | Price |
|
01 |

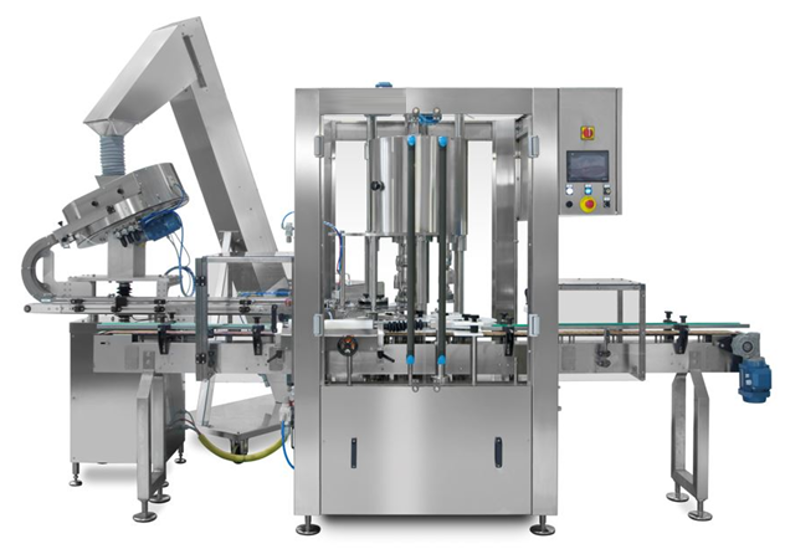

Capping machine model “ T 3 VP “
Automatic Rotary 3-heads “free-standing” capping machine, suitable to close the Pet with plastic caps, as for your samples. Basic machine supplied with equipment for 1 bottle and 1 cap |
| ACCESSORIES |
| 02 | Caps Elevator | |
| 03 | 1 Mt. Infeed conveyor + 1 Mt. Outfeed conveyor | |
| 04 | Drive on the conveyors belt by inverter with speed adjustment by PLC | |
| 05 | Missing cap on the bottle detector with machine stop system | |
| 06 | Teleservice | |
| OPTIONAL | ||
| 07 | Missing cap on the bottle detector with rejection system of the no capped bottles with external motorized conveyor (non-stop system) | |
| 08 | Upgrade for ALLEN-BRADLEY electrical and electronic equipment | |
| 09 | Conditioner to the electric panel |
| EQUIPMENT FOR BOTTLE AND CAP CHANGEOVER |
|
10 |
Bottle changeovers
nr. 1 set of star and feed-screw for different diameter |
|
|
11 |
Cap changeovers complete with:
· Supplementary Tank of the cap Sorter · Overturning Curve of the air caps conveyor · Equipment of the Pick & Place · NR. 5 mechanical clutches of the closing heads |
