Description

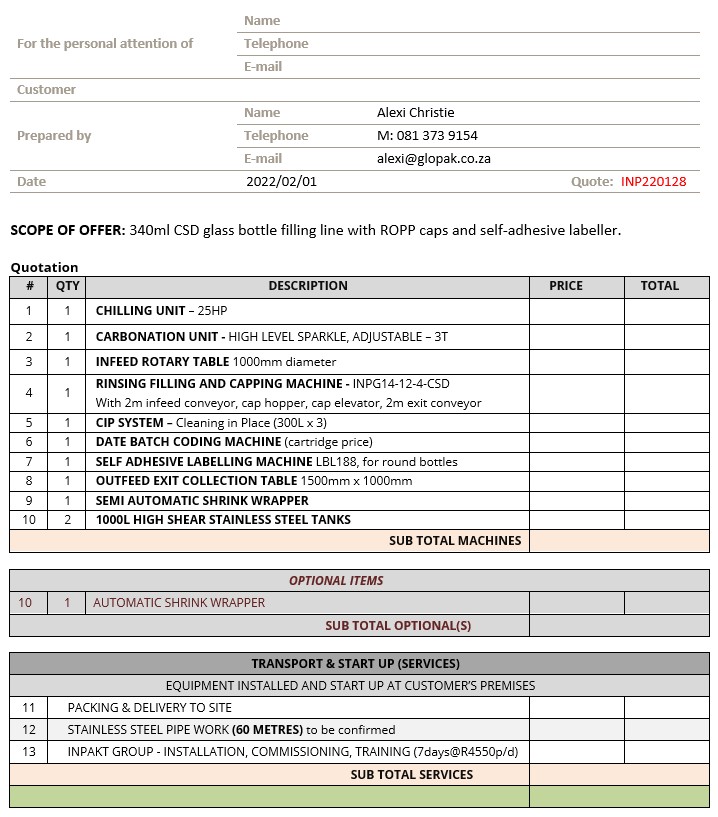

GLASS BOTTLE BEVERAGE SOFT DRINK

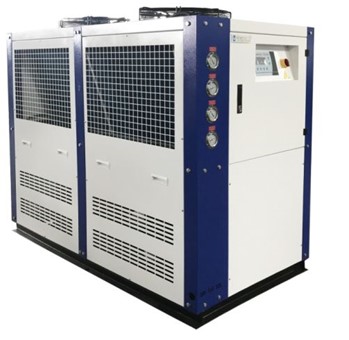

1) CHILLING UNIT – 25HP

Model Power of Compressor Cooling Capacity Refrigerant Power of cooling pump Chilled Water Flow Chilled Water Pipe Power of Fans Machine Size
Kw HP Kcal/h Kw Freon R22 KW      T/Hr inch KW L W H
STSF-08 70 8 60000 21 3 6 2 0.55 1350X1200X1800

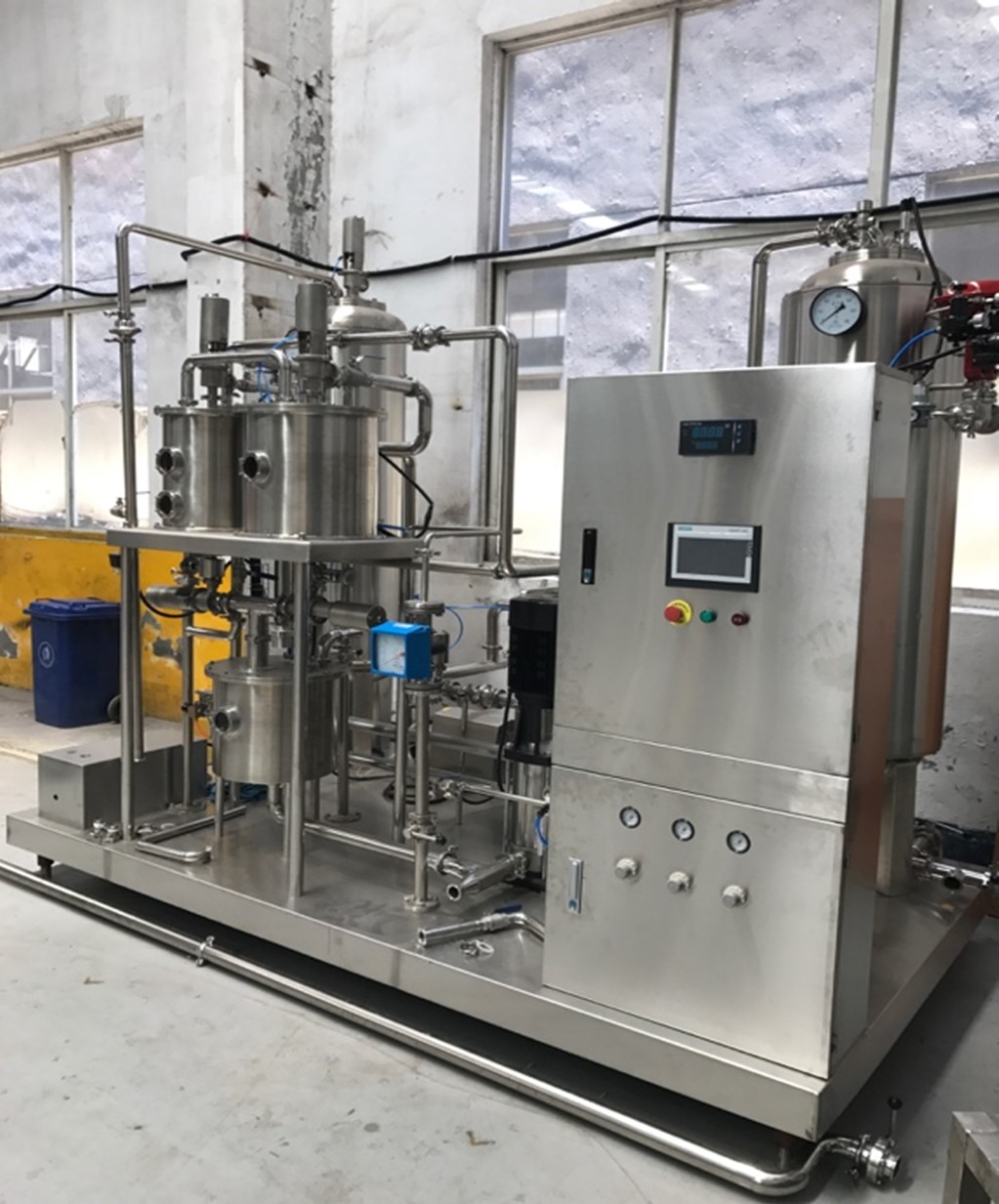

2) CARBONATION UNIT – HIGH LEVEL CARBONATION, ADJUSTABLE – 3T
  • The pressure in all tanks and the liquid level of the machine are all controlled automatically with PLC.
  • Fully automatic mixing system, pre-set programming, mix volume ratio adjustable, capacity adjustable
  • Vacuum deoxidization system in-built at normal-temperature. Deoxidation ratio reaches above 90%. It has a baffle heat exchanger to cool the sugar-water mixture and carry out double carbonating for high level of carbonation.
  • CIP system connector, effectively clean and sterilize the interior of the mixer and also the filler automatically
  • All 304 stainless steel pump

Carbonator Specifications
Production Capacity 3000 litre per hour
Mixing Volume Ratio 3.8-4.2
Mixing proportion 3:1 to 6:1
Mixture precision ≤1.5%
Pressure of Compressed air(MPa) 0.6-1
Compressed Air Consumption (m3/h) 0.8
Pressure of CO2 (MPa) 0.8-1
CO2 Consumption(m3/h) 2.5
Pressure of Purified Water(MPa) 0.1-0.2
Mixing Temperature(c) <4
Area of Heat Exchanger(m2) 12
Power Consumption (kw) 11
Dimension(L×W×H)(mm) 2500×1800×2200
Net Weight(kg) 1800

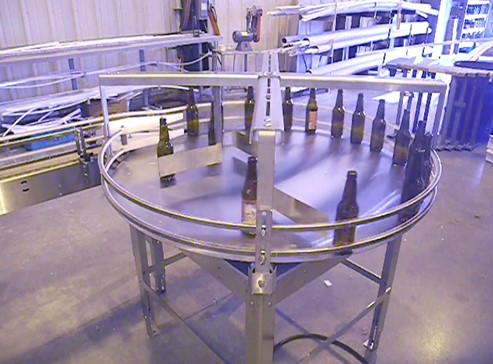

3) INFEED ROTARY TABLE 1000mm diameter
  • Rotating table with diameter 1000mm
  • Variable speed drive
  • Wash down safe (IP55)
  • Corrosion resistant (stainless steel 304 and engineering plastics construction)

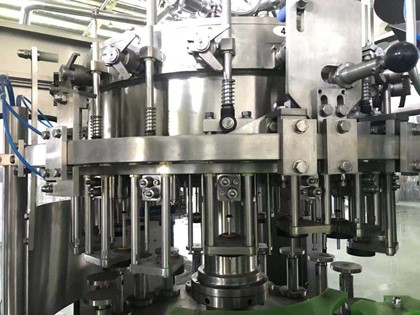

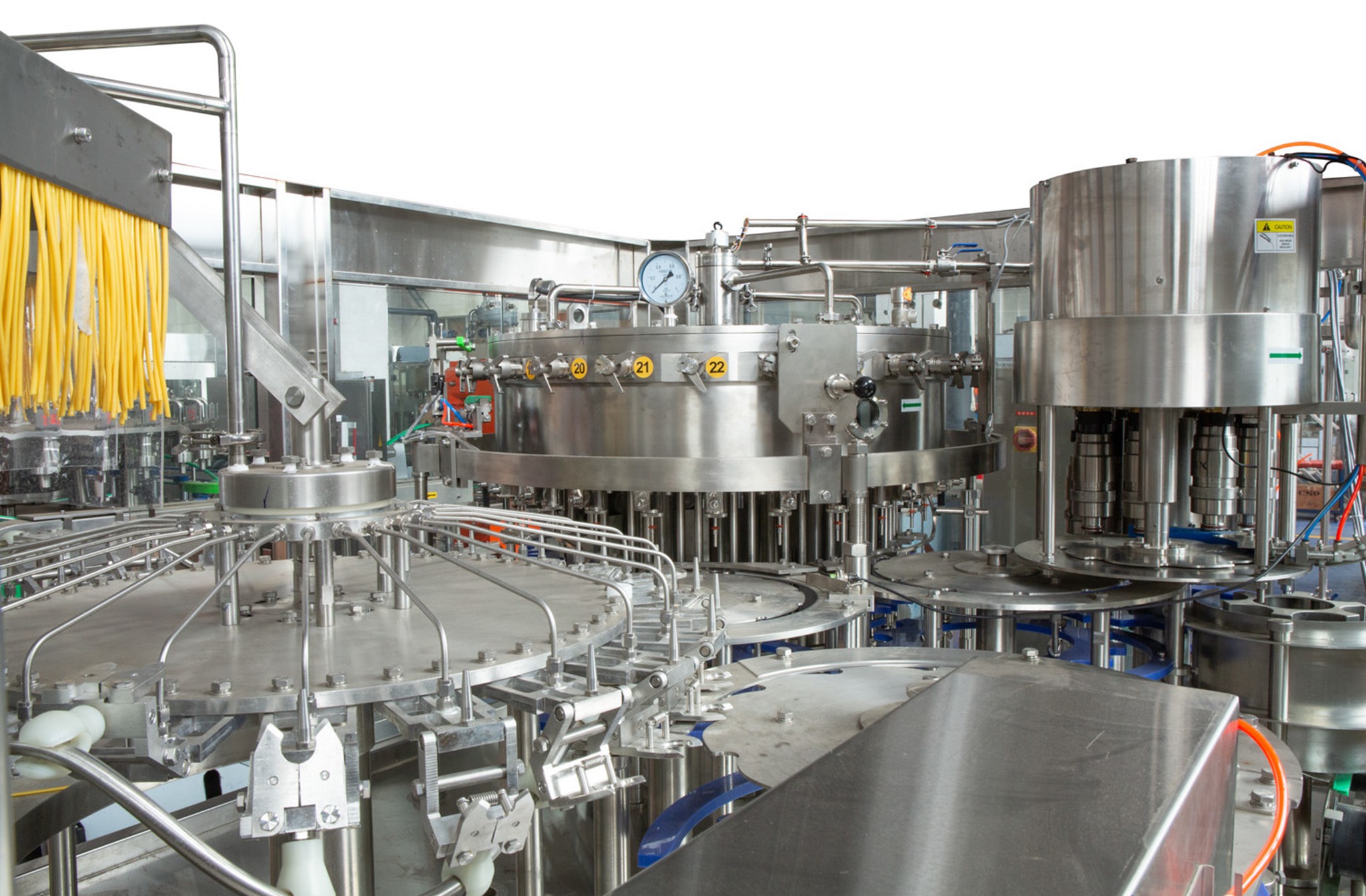

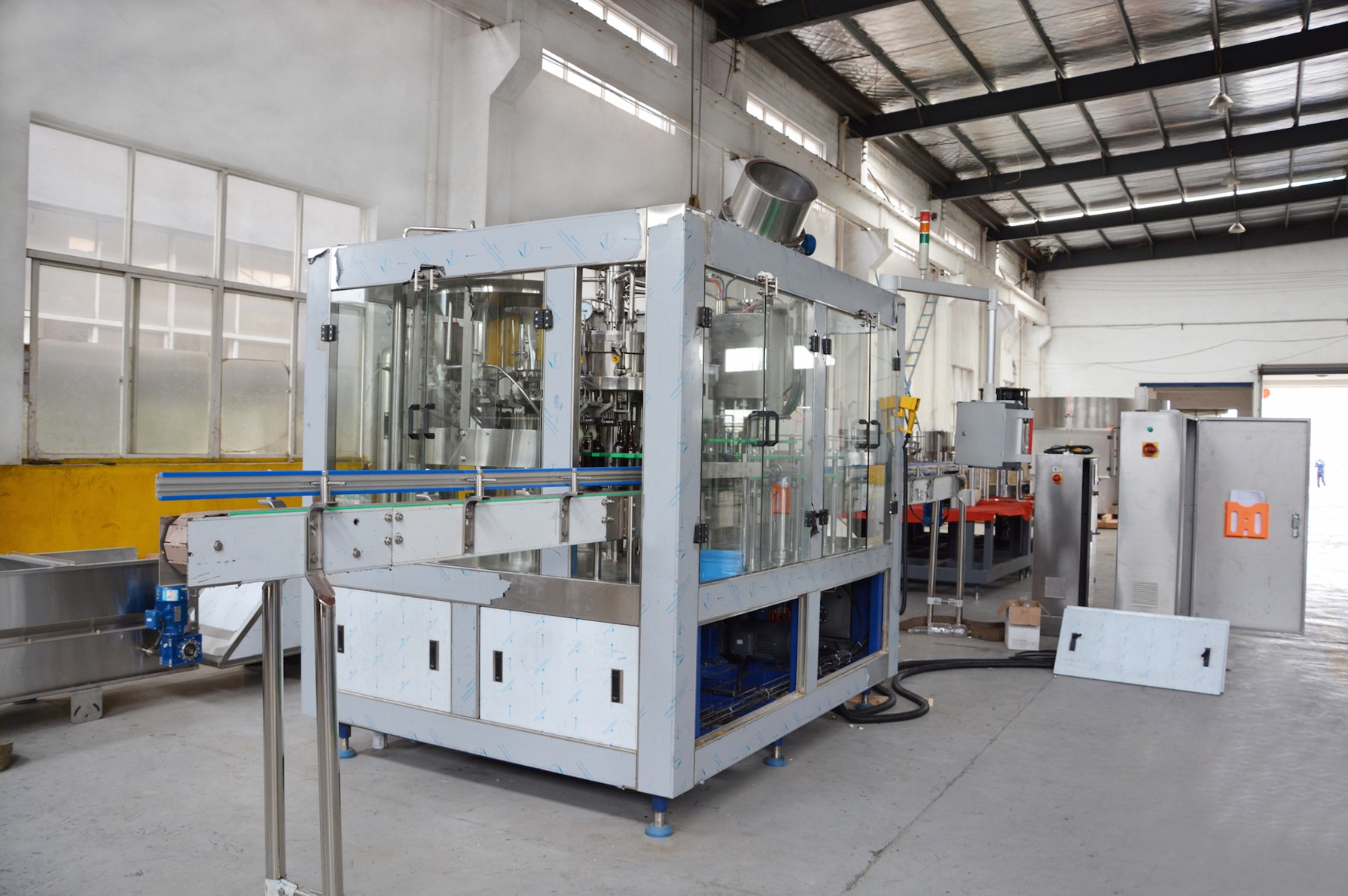

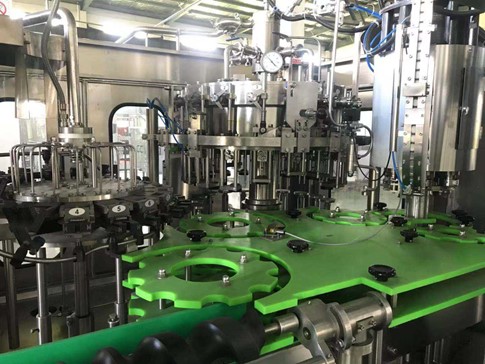

4) RINSING FILLING AND CAPPING MACHINE – INPG14-12-4-CSD With 2m infeed conveyor, cap hopper, cap elevator, 2m exit conveyor
Specifications
Output Capacity 2000-2500BPH on 340ml Glass Bottle
Rinsing /Filling / Capping heads Quantity 14pcs / 12pcs / 6pcs
Suitable Glass bottle size Bottle Diameter Φ50~Φ90mm Bottle Highness:150~300mm, Bottle neck: 20~35mm         Bottle Volume 200-2000ml
Washing Water Required 800 litre per hour
Washing Pressure Required 0.4Mpa
Washing time 3 seconds
Filling Pressure 0.2-0.35MPA
Working Power 380V AC 50HZ  3-phase, (other power supply is available)
Control Panel Power 24V DC
Power 4.29kw
Machine Dimension 2650X2230X2750mm
Gross Weight 2800kg approximately

This machine works with chain plate conveyor belt This machine is used to fill carbonated drinks into glass bottle and with aluminium caps capping function. This machine integrated three functions:

  1. Rinse the empty glass bottle with clean water,
  2. filling the rinsed bottles,
  3. capping the filled bottles

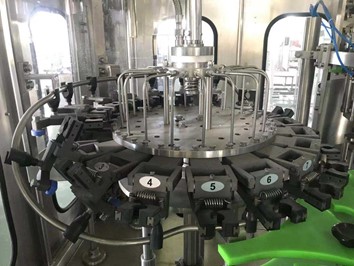

Rinsing

  • 304 stainless steel rinser heads, water spray style inject design.
  • 304 Stainless steel Gripper with plastic pad
  • 304 stainless steel pumps

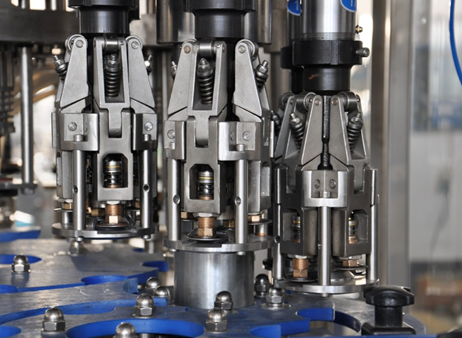

Filling

  • Isobar Pressure filling nozzles which ensure minimal loss of CO2
  • High precision filling nozzle, PLC variable signal control, filling smoothly & steadily
  • All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
  • No bottle no filling

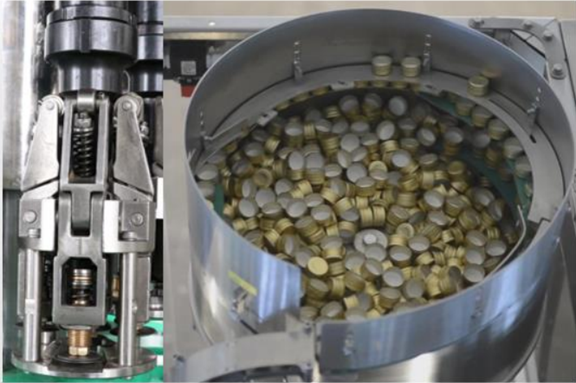

      Capping

  • Automatic caps arranging, feeding and capping
  • Place and capping system
  • All 304 stainless steel caps container
  • No bottle no capping and Automatic stop when lack of bottle

Electric Part & Safe Device & Automation:

  • If incident system will automatically will stop & alarm
  • Emergency switch
  • SIEMENS PLC, Touch-screen Control Panel & inverter
  • Omron brand sensor & other electric parts adopted, heavy duty running
  • 304 stainless steel rinsing pump

Machine Base & Construction:

  • 304 stainless steel frame
  • Tempered Glass window
  • Easy change over parts
  • Anti-rust
  • All seal where liquid may Leakage & base neck come with rubber, water proof
  • Manual lubrication system

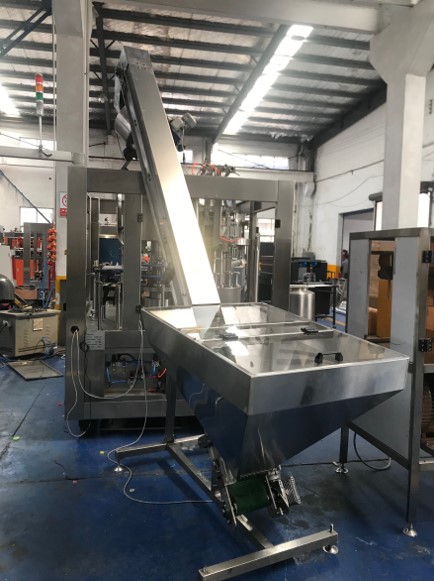

Cap Elevator

  • Stainless steel construction
  • Capacity: 3000caps
  • Automatic stop and feeding cap
  • Power :037kw

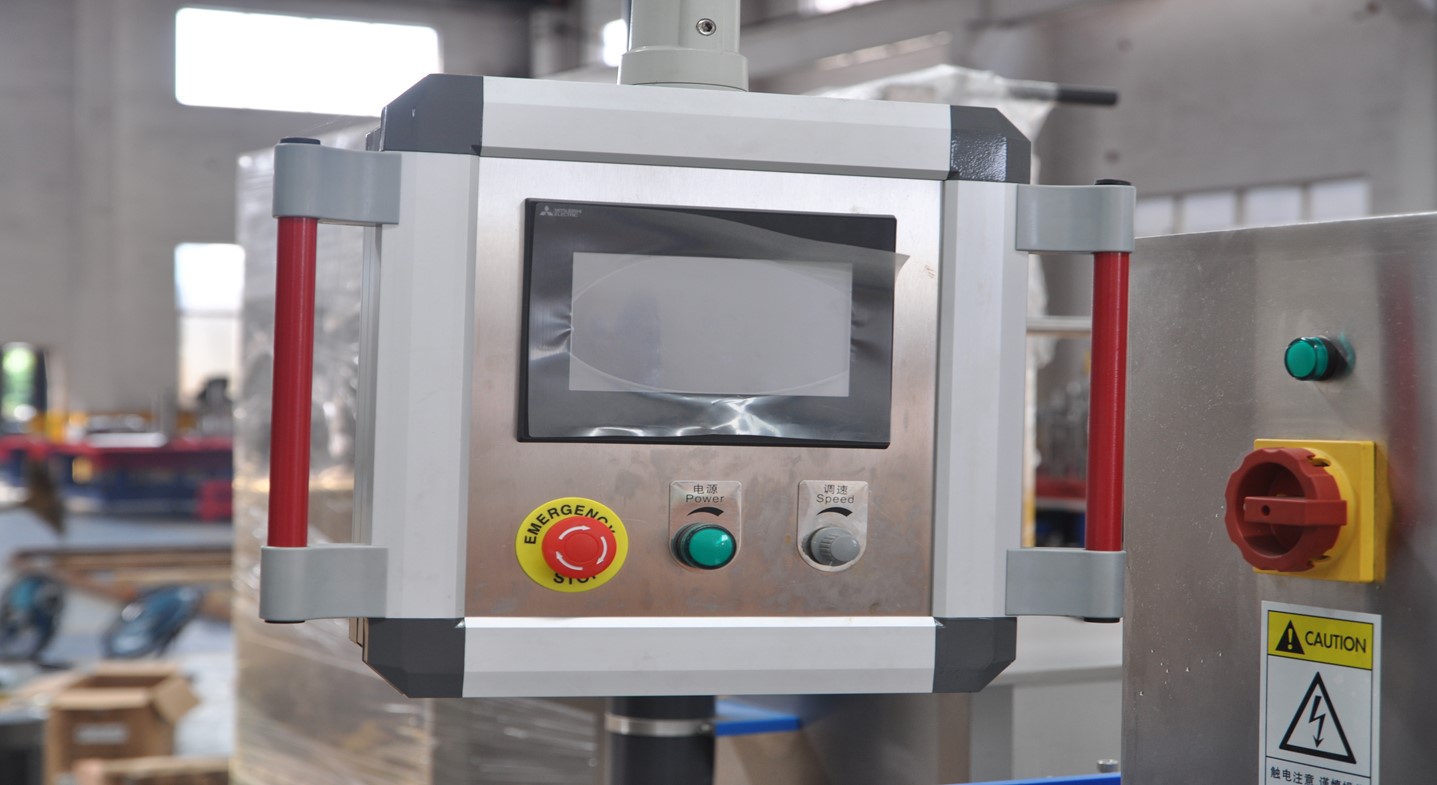

Siemens /Mitsubishi Touch screen

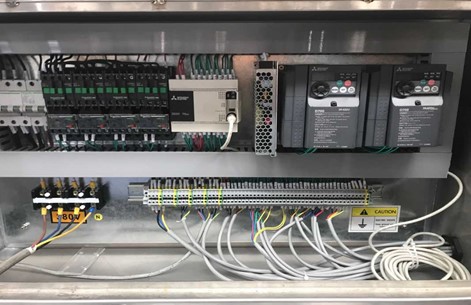

Cabinet box

PLC: Mitsubishi Inverter: Mitsubishi Touch screen: Siemens Switch: Schneider Contactor: Schneider Sensor: BANNER

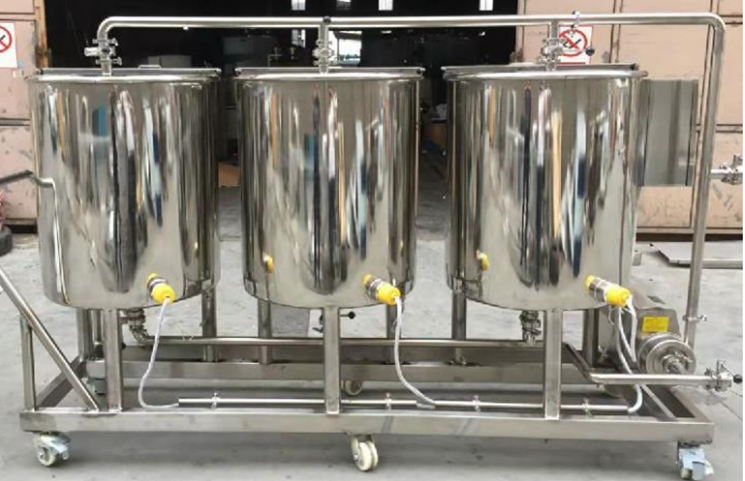

5) CIP SYSTEM – Cleaning in Place (300L x 3)

CIP systems designed especially for the food, dairy, beverage, and pharmaceutical processing industries deliver cleaning processes to avoid risks to product quality and purity.

CIP equipment helps control, monitor, and document the cleaning methods essential to hygienic processing. As clean-in-place technologies have become more efficient and cost effective, cleaning process systems in-place not only helps ensure product safety but can also add efficiencies to cleaning processes.     Alkaline tank, Disinfectant Tank and Rinse Tank Material SUS316&304SS Volume per tank 300L Thickness of body 2mm Heating method Electric Power 20KW Function

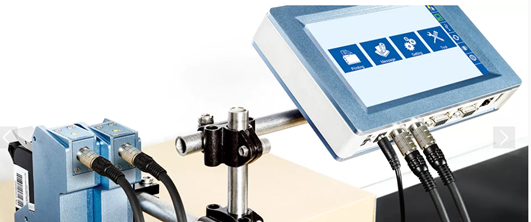

6) DATE BATCH CODING MACHINE (CARTRIDGE TYPE)

  • 7-inch colour touchscreen display
  • Supports up to 2 print heads
  • Independent controller separated from the print heads, suitable for various working environments
  • Printing height up to 25.4mm (1.0″)
  • Low periodical maintenance
  • Clean and trouble-free technology
  • User-friendly interface
  • Easy integration into any production environment
  • Easy adjustment for down and side printing
  • Printing on porous or non-porous surface
  • Ability to backup settings, logos, and messages
  • User level password protection
  • Automatic recognition of inks (aqueous or solvent)

and application of appropriate printing parameters

  • Controller stores up to 500 messages internally
  • Ethernet and USB connectivity
  • PC software for message template design
  • Printing speed up to 60m/min (200ft/min)
  • Resolution up to 600 x 600 dpi

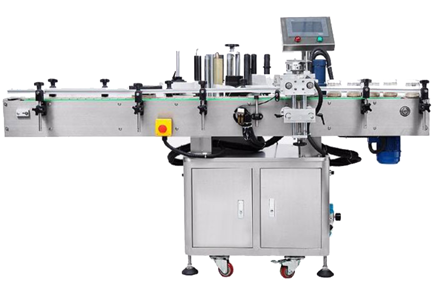

7) SELF ADHESIVE LABELLING MACHINE – LBL188

Single side Labelling machine for are suitable for applying single side Labels on  Round shape containers with output Up to 80 Labels per minute depending on products and label size on one side, two sides, three sides or more sides of different kinds object , The most versatile, elegantly designed linear labelling machine to meet the needs of major users of modern packaging lines, requiring high efficiency with speed, accuracy and durability. Easy to use adjustments require minimum tools or change of parts.

SPECIFICATION

Power 0.5kw
Label Speed Up to 80pcs/min
Labelling Precision ±1mm
Roll Inner Diameter 40mm
Max Roll Outer Diameter 300mm
Bottle Diameter 20-100mm
Bottle Height 30-200mm
Sticker Size L:20-300mm, W: 10-170mm
Dimension 2000*1100*1350mm
Weight 150kg

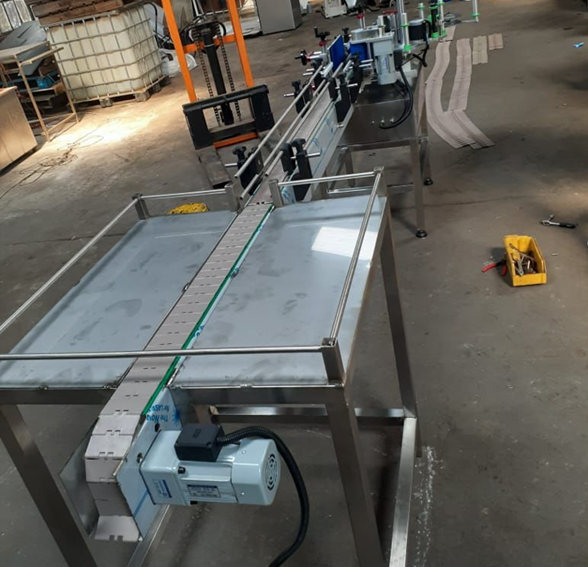

8) OUTFEED EXIT COLLECTION TABLE 1500mm x 1000mm

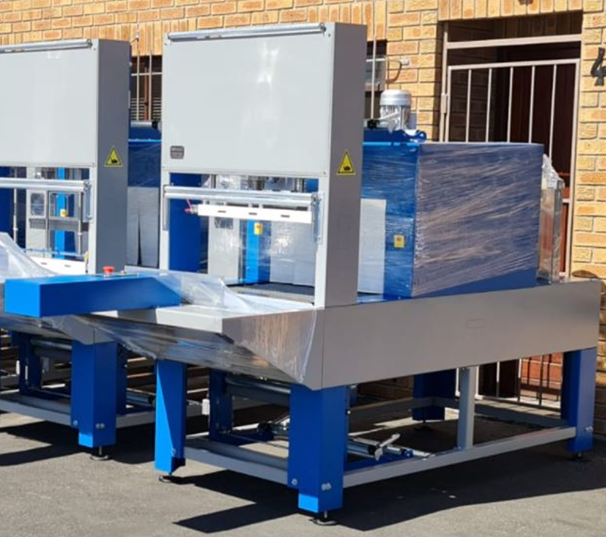

9) SEMI AUTOMATIC SHRINK WRAPPER – GPK1477

Specification

Model GPK1477
Voltage 380V 3phrase 50-60HZ
Power 21KW
Packing Speed 0-25pcs/min
Sealer/Tunnel Size L1500*W600*H400mm
Max Packing Size L1300*W450*H300mm
Net Weight 500kg
Machine Size L2400*W900*H1700mm

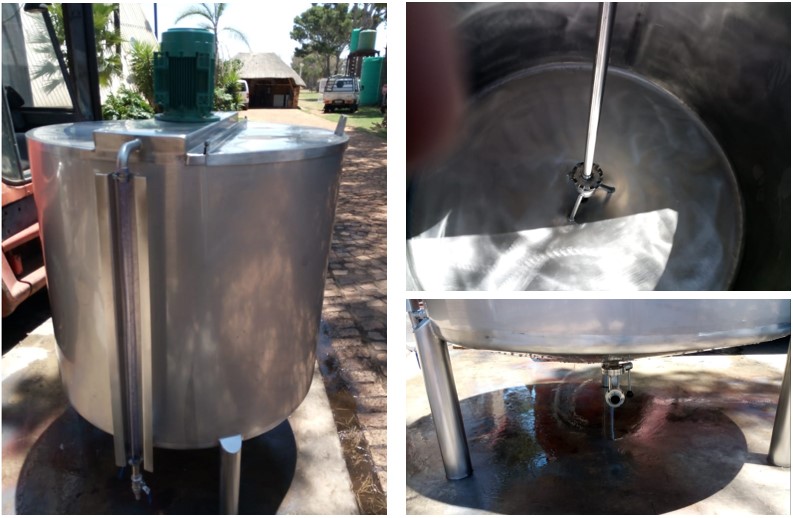

10) 1000L HIGH SHEAR STAINLESS STEEL TANKS



1000lt Stainless Steel Mixing Vessel with CIP spray balls
Details Description
Capacity: 1000lt
Material of construction: Stainless Steel SS304L
Position of vessel: Vertical
Bottom Configuration: 15° Conical with Knuckled Radius
Leg Details: 3 x Stainless Steel Pipe Legs with Base Plates
Top Configuration: Flat with Hinged Lid
Mixer Details: Top mounted geared high shear mixer unit, 2.2KW, 380 Volt, complete with Solid Stainless-Steel Shaft and Mixing Impellor Set with bottom support spider
Fittings: 1 x DN65 Male Outlet
Diameter 1000mm
Shell Height 1250mm
Vessel Finish: Polished Finish
