Description
SCOPE OF OFFER: –
PLASTIC TUBE FILLING AND SEALING / LOBE PUMP FILLER / MIXING TANK / SHRINK WRAPPER
COMMERCIAL OFFER
| Machine Description | Qty | Price | Total | |
| 1) TUBE FILLING AND SEALING | ||||
| Semi-automatic Tube Filling and Sealing Machine PPT-600
Set of format parts for tubes diameter X mm |
2 set | |||
| Extra Set of format parts for tubes | 2 set | |||
| 2) LOBE PUMP FILLER | ||||
| Semi auto lobe pump filler LB440 | 2 set | |||
| 3) MIXER | ||||
| 100L Fixed type Vacuum Homogenizer Mixer | 1 set | |||
| 4) SHRINK WRAPPER | ||||
| Semi-automatic shrink wrapper IN650 | 1 set | |||
| Sub Total | ||||
| SERVICES | ||||
| DELIVERY (EX WORKS PRETORIA) | INCLUDED | |||
| ASSEMBLY / TESTING / PERSONAL TRAINING | INCLUDED | |||
| Sub Total (ex-vat) | ||||
| Vat | ||||
| Total | ||||

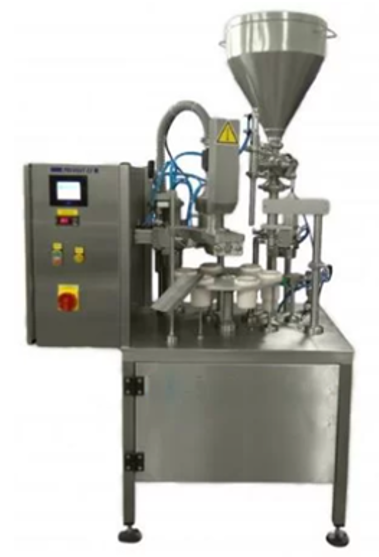

- TUBE FILLING AND SEALING MACHINE
PRODUCT DESCRIPTION:
Semi-automatic Tube Filling and Sealing Machine PPT-600
This semi-automatic machine for filling and closing of plastic tubes with automatic turning of rotary table is equipped with 6 working positions in following steps:
- Tube inserting by hand
- Tube orienting
- Product filling
- Tube Heating and pressing and coding
- Tube cutting
- Tube discharge automatic
Technical data:
Filling volume: 10 – 250 g / ml
Tube diameter: 16-50 mm
Tube length: 50 – 250 mm
Capacity: approx. 600 pcs/h
El. connection: 400 V, 1,5 kW
Air pressure: 6 bar, 150 ltr./min
Dimensions: 950 x 950 x 1750 mm

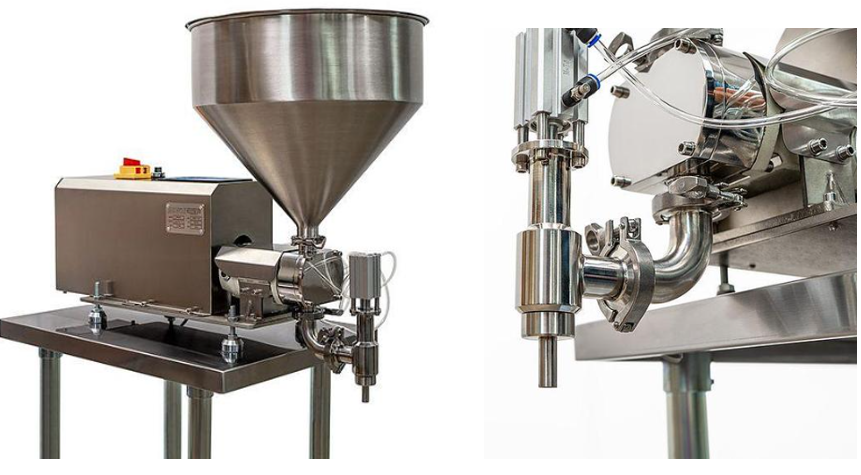

2) LOBE PUMP FILLER
PRODUCT DESCRIPTION:
Semi auto lobe pump filler LB440
This lobe pump filling machine is a high precision metering pump filler. It’s multifunctional PLC control system allows the operator to adjust the filling time, the waiting time and the rotation speed of the pump to obtain different filling capacities for various types of products. It can be used to handle slurries, pastes and liquids. This machine is perfect for free-flowing liquid and medium-dense products. The product itself must not contain pieces which must remain intact otherwise they may be crushed.
Specifications
| Power supply | 220V 50Hz |
| Air supply | 70 PSI @ 1 CFM |
| Contact material | SS316 |
| Hopper capacity | 30 L |
| Includes the following nozzle tips (OD) | 8, 10, 14, 16, 20 mm |
| Adjustable pump rotation speed | 1-30 RPM |
| Adjustable filling time | 0.01-99 s |
| Adjustable waiting time | 0.1-99 s |
| Filling accuracy | 98 % |
| Maximum product temperature | 65°C |
| Overall dimensions (L x W x H) | 760mm x 220mm x 610mm |
| Weight | 30kg |

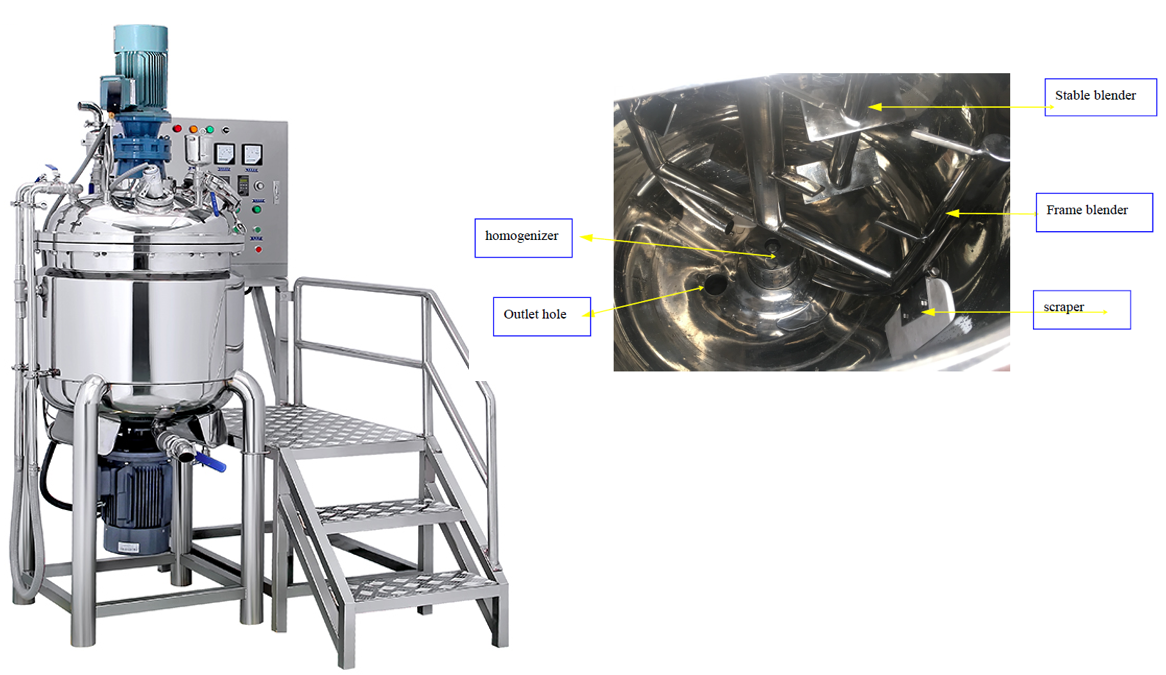

- 100L FIXED TYPE VACUUM HOMOGENIZER MIXER
PRODUCT DESCRIPTION:
| 1. The technical parameter of the main pot (3 layers ): | |||
| No. | Item | Technical parameter | |
| 1.1 | volume: | Design volume :120L;working capacity:100L; | Load factor: 0.8 |
| 1.2 | Heating method: | Electric heating, water cooling | Rated pressure: 0.2Mpa |
| 1.3 | Structure: | 3 layers , the blender is one direction and double stable blender ,bottom homogenizing; | |
| 1.4 | The material of the tank: | The material contact part:SUS316L;Thickness:3mm; | Imported |
| Middle：SUS304, thickness :3mm | Heat preservation: Aluminium silicate | ||
| Shall layer:2mm | |||
| 1.5 | Cover craft: | Material filer, Vacuum pressure gauge, Vacuum removing valve, Vacuum port, Positive pressure inlet, clean ball, Light for view, View window, spice inlet, | No dead corners, |
| 1.6 | Blending method: | One directional blending, and with scraper of Teflon | Material: SUS316L |
| Blender: | Blending power :1.5KW,speed :0~63r/min; | beide | |
| 1.7 | Homogenizing method : | bottom homogenizing, Internal recycle type homogenizer; | Material :SUS316L |
| Homogenizer: | Homogenizing power:4KW,Speed :0~3000r/min | beide | |
| Machining: | Rotor and stator with wire-electrode cutting and mirror polish | ||
| 1.8 | Sealing : | Germany mechanical seal, Japan Bearing; |
|
| 1.9 | Polishing : | 300EMSH(Sanitation grade),Meet GMP requirement | 320U |
| 2. Electric controller system technical parameter: | |||
| No. | Item | Technical parameter | Remark |
| 2.1 | Electric controller | Shell material:SUS304 thickness :2mm | |
| Instrument: temperature gauge, time digital display meter, current voltmeter | DELIXI | ||
| Button control | |||
| Electrical component: including all kinds of relays | DELIXI | ||
| 2.2 | Temperature control: | Bottom plug-in type, sanitation grade:PT100,50-200 degree | M12 threaded connection type |

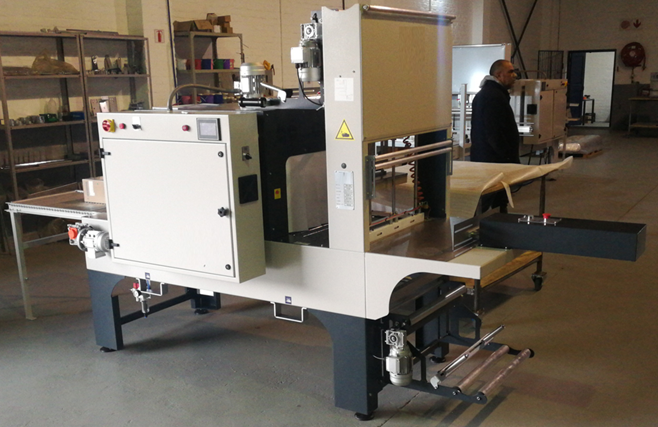

- SEMI AUTOMATIC SHRINK WRAPPER IN650
PRODUCT DESCRIPTION:
Offer to supply
Manually infeed combination sleeve sealer and shrink tunnel with opening dimensions of
650 wide x 400mm high.
Electrical requirement
380 Volts 3 Phase Neutral and Earth. (45 amps per phase).
Compressor requirement
Clean source of dry air at 500 KPA (100 It. free air per minute).
Speed
Up to 10 packs per minute (product and operator dependent)
Features
| Frame | Heavy duty mild steal |
| Finish | Powder coated |
| Sealing System | Impulse heat-sealing system, hand operated |
| Hot Box | 1200mm heat chamber |
| PLC | Delta |
| Conveyor | Galvanized wire mesh |
| Switch Gear | Lovato |
| Sensors | Omron |
| MCB | Hager |
| Heating Capacity | 24kw |
| Control Station | LCD display keypad with fault on screen and audio beep on any fault |
| Machine Dimensions | L3500 / W1500 / H2000mm |
