Description

No DESCRIPTIONS

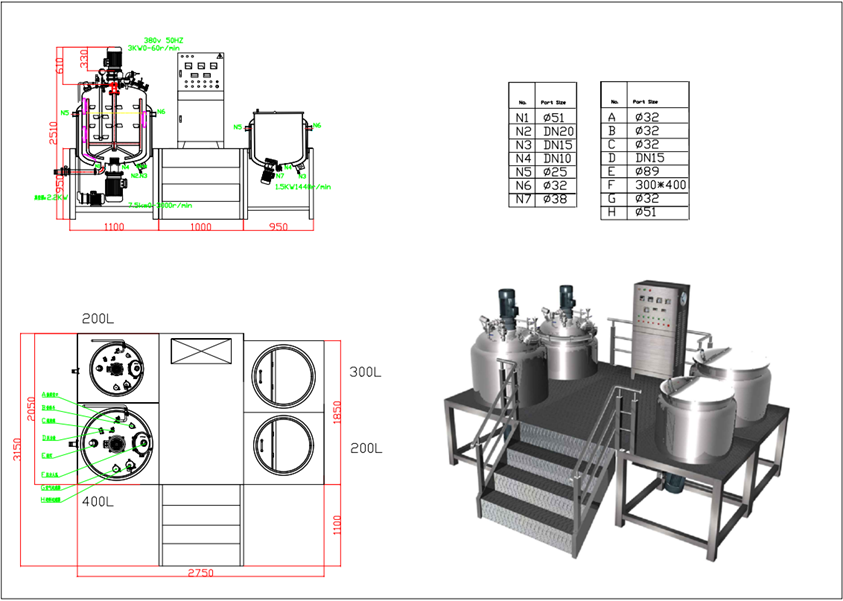

1 200l VACUUM HOMOGENIZER MIXER TANK

Working volume :200L

Design volume :240L

Top mixing:2.2kw 0-63rpm

Bottom homogenizer :3kw 0-3000rpm

Vacuum pump:0.81kw

Electric part: Delixi, Schneider

Motor: Siemens

Inverter: Delta

Electric parts: Schneider/Delixi

speed:1440rpm

Outer Material: SUS304 3mm

Middle material: SUS304 4mm

Inner material: SUS316L 5mm

Weight :1100kg

Install Size:2600*2300*2000mm

Scraper: Teflon 6pieces

Heating power:36kw

Power: AC380 3phase

No DESCRIPTIONS
1 400l VACUUM HOMOGENIZER MIXER TANK

Working volume :400L

Design volume :450L

Top mixing:4kw 0-63rpm

Bottom homogenizer :11kw 0-3000rpm

Vacuum pump:1.5kw

Electric part: Delixi, Schneider

Motor: siemens

Inverter: Delta

Electric parts: Schneider/Delixi

speed:1440rpm

Outer Material: SUS304 3mm

Middle material: SUS304 4mm

Inner material: SUS316L 6mm

Weight: 1400kg

Install Size:2800*2500*2200mm

Scraper: Teflon 6pieces

Heating power:45kw

Power:AC380 3phase



1 Water pot Three-layer stainless steel container, top open cover, bottom head , top frame type wall scraping and stirring, bottom dispenser. Working capacity: 300L, full volume:360L Stainless steel mirror polished square pipe, the level up to 300U






a

Inner pot Barrel:stainless steel SUS 316L,thickness:3mm

bottom end cover:stainless steel SUS 316L,

thickness:3mm

Jacket Material: stainless steel SUS 304,thickness:3mm

Heating : electric

heat preservation:Aluminum silicate fiber cotton,thickness: 30mm

Jacket design pressure 0.22MPa
Surface package Material: stainless steel SUS 304,thickness:3mm
b Pot cover material: stainless steel SUS 304,thickness:3mm Flip type one side detachable






c

Stirring Bottom turbo stirring, SUS316L material The bottom stirring force is greater, making the dispersion and mixing completely
Stirring motor power:0.75 kw ,rotation speed:  1400rpm/min
Mechanical seal Borgman seal technology
d Pot bottom Bottom outlet valve: DN51 SUS316L butterfly valve, temperature sensor, SUS304 material, with shielding wire
2 Oil pot Three-layer stainless steel container, top open cover, bottom head, top frame type wall scraping and stirring, bottom dispenser. Working capacity: 200L, full volume: 240L Stainless steel mirror polished square pipe, the level up to 300U






a

Inner pot Barrel: Stainless steel SUS 316L,thickness:3mm

bottom end cover:stainless steel SUS 316L,

thickness:3mm

Jacket Material: stainless steel SUS 304,thickness:3mm

Heating : steam fill in the jacket

heat preservation:Aluminum silicate fiber cotton,thickness: 30mm

Jacket design pressure 0.22MPa
Surface package Material: stainless steel SUS 304,thickness:3mm
b Pot cover material: stainless steel SUS 304,thickness:3mm Flip type one side detachable






c

Stirring Bottom turbo stirring, SUS316L material The bottom stirring force is greater  , making the dispersion and mixing completely
Stirring motor power:0.55kw ,rotation speed:  1400rpm/min
Mechanical seal Borgman seal technology
d Pot bottom Bottom outlet valve: DN51 SUS316L butterfly valve, temperature sensor, SUS304 material, with shielding wire
