BAG IN CARTON PACKING LINE

Description

Bag in Carton Packing Line – Quotation

No	Product	Specification	Weight	Qty	Unit price	Price

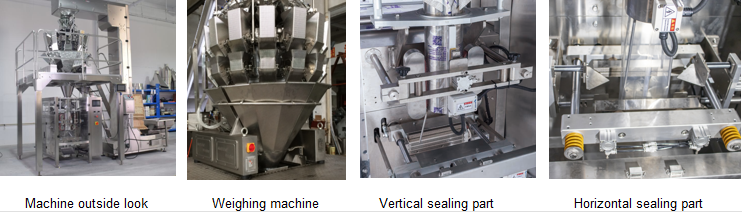

1	PK-420 Packing Machine	Material: S S 304 Bag width: 50-20mm Bag length:50-300mm Max film roll width: 420mm Speed: 10-40 bags/min Voltage: 220V / 1P / 50Hz / 2Kw Bag type: Pillow Bag Air compressor: 0.65mpa, 0.4m2/min Size: 1265mm x 1060mm x 1600mm Including: Color mark detector Free quick wear spare part Production / Expiration date coder Auto film rectify deviation adjusting	400kg	1
2	10 Head-Weigher	Weigh head Nos: 10 head Material: SS304 Control panel: PLC+touch screen Working voltage: 220V, 1P, 50Hz, 1kw Hopper Volumn: 1.6 L Packing range: 10-1000g (±1%) Max speed: 60 bag/min Size: 1180mm x 1020mm x 1100mm Usage: weighing and filling small sachets	200kg	R1.00
3	Weigher platform	Material: SS 304 Size:2000mm x 2000mm x 1800mm Usage: for support the10 head weigher	100kg	R1.00
4	Z type bucket elevator	Material: S S 304 Voltage:380V, 3P,50Hz, 0.75kw Hopper: 650mm x 650mm Throughput: 3-6m3/h Size: 2000mm x 900mm x 3600mm Usage: auto feeding product into weigher	200kg	R1.00
5	Finished product conveyor (Optional)	Material: SS 304 Height: 800mm Voltage: 220v Power: 0.04kw Conveying capacity:60 bags/min Size: 1300mm x 370mm x 800mm	50kg	R1.00

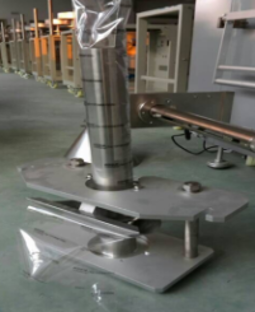

6	Bag former (Optional)	Material: SS 304 Bag type: Pillow bag Size: Customized Usage: For different bag width replace PS: machine including one former for free	50kg	R1.00

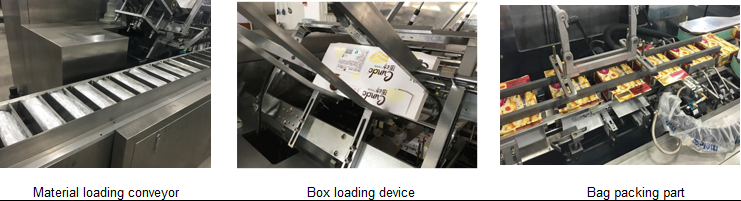

7	Automatic Box Packing Machine	Material: SS 304 Box length range: 70-230 mm Box width range: 50-180mm Box height range: 20-90mm Speed: 10-50 boxes /min Voltage: 380V,3P,50Hz, 1.5kw Weight: 1200kgs Air compressor: 05-0.7mpa, 15-60L/min Size: 4500mm x 1600mm x 1900mm Including: PLC + touch screen Hot melt glue machine Free quick wear spare part No material no carton sealing Auto display trouble, alarm, counting Sachet transporting and shaping conveyor	1000kg	R1.00
